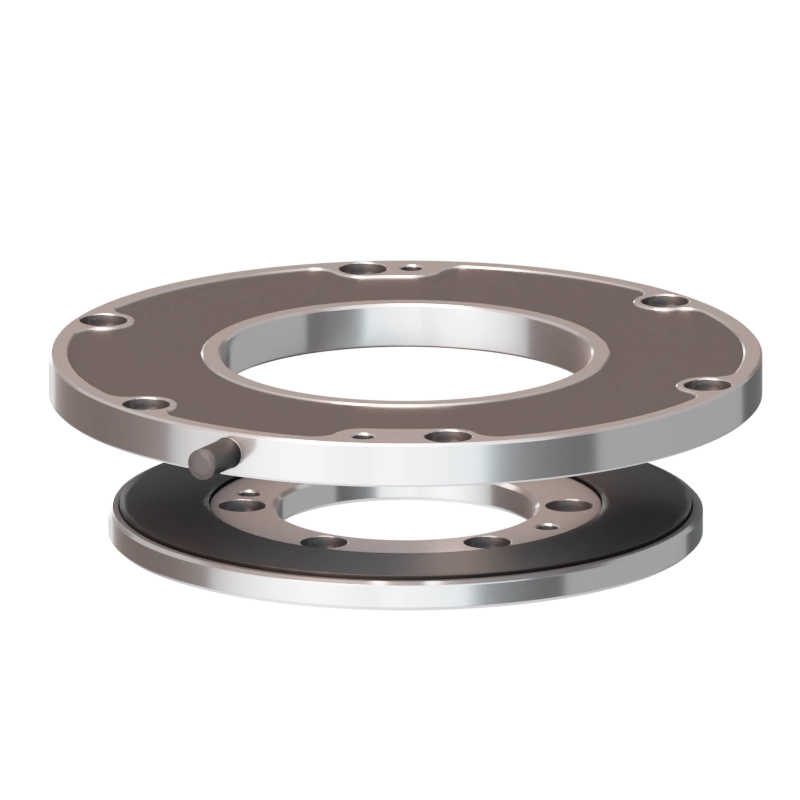

Encoder | GMI® Angle | GMI-ANG-096

GMI® Angle Encoder Arcseconds in All Environments

Magnetic encoder GMI-ANG-096 for industrial robust resolution integration

Hysteresis-free performance and accuracy in arcseconds for even the most demanding applications.

Discover the pinnacle of precision with GMI® encoders from Flux. Their exceptional arc-second performance meets the demands of the most critical industrial applications. These encoders, with their robust IP67 stainless steel construction and resolution of up to 25 bits, guarantee uncompromising reliability. Easy to install with Plug-and-Play functionality, GMI® encoders offer an adaptive solution for maximum performance in any environment. Opt for uncompromising precision with GMI® encoders from Flux.

Advantages

  • Plug-n-play
  • No field calibration required
  • Wide mounting tolerances
  • High accuracy

Benefits

  • Low installation cost
  • Low integration effort
  • Easy installation

At your service

Need help in selecting the right product ?

Need more information ?
Contact us

System Data

GMI-ANG-096
Type Axial, frameless, true absolute Giant Magneto Impedance encoder GMITechnology-FLUX GmbH proprietary
Standard Resolution 23 bits
ENOB in entire mounting tolerance range 21 bits
High Accuracy ±8”, 0.002°, ±40µrad
Standard Accuracy ±14”, 0.004°, ±70µrad
Thickness 10.80
Hysteresis none
Repeatability 1 resolution count
Position update rate and signal latency Real-time
Power-up Time max. 0.8 sec

Electrical Data

Supply voltage OptionAV:min.4.35Vdc.max.36Vdc
Option5V:min.4.35Vdc.max.6Vdc
Option24V:min.6Vdc.Max.30Vdc
Reverse polarity protection yes
Current Consumption max. 150 mA @ 25 Vdc, max. 140 mA @ 24 Vdc

Mechanical Data

Stator Base Material Stainless steel CTE ~ 10 ppm/°C
Stator Weight 220.00 g
Rotor Base Material 0
Rotor Weight 115.00 g
Vibration EN 60068-2-6, 20 g, 55 .. 2000 Hz
Shock EN 60068-2-27, 200 g, 6 ms

Mounting Tolerances

Nominal Axial (air-gap) 0.30 mm
Axial Tolerance 0.25 mm
Radial Tolerances 0.20 mm

Environmental Data

Temperature Range - Standard Operating -20°C .. +85°C
Temperature Range - Standard Storage -20°C .. +85°C
Temperature Range - Extended Operating -40°C .. +105°C
Temperature Range - Extended Storage -55°C .. +125°C
Ingress Protection IP67
EMC Immunity complies with EN IEC 61000-6-2
EMC Emission complies with EN IEC 61000-6-4
GMI-ANG-096_rev01.zip (489.79 KB)
