INDUCTIVE Rotary Encoder: Precision in Compact Form

Magnetic encoder IND-ROT-096-A21 for absolute encoder magnetic integration

An absolute encoder of highest quality in the smallest possible size.

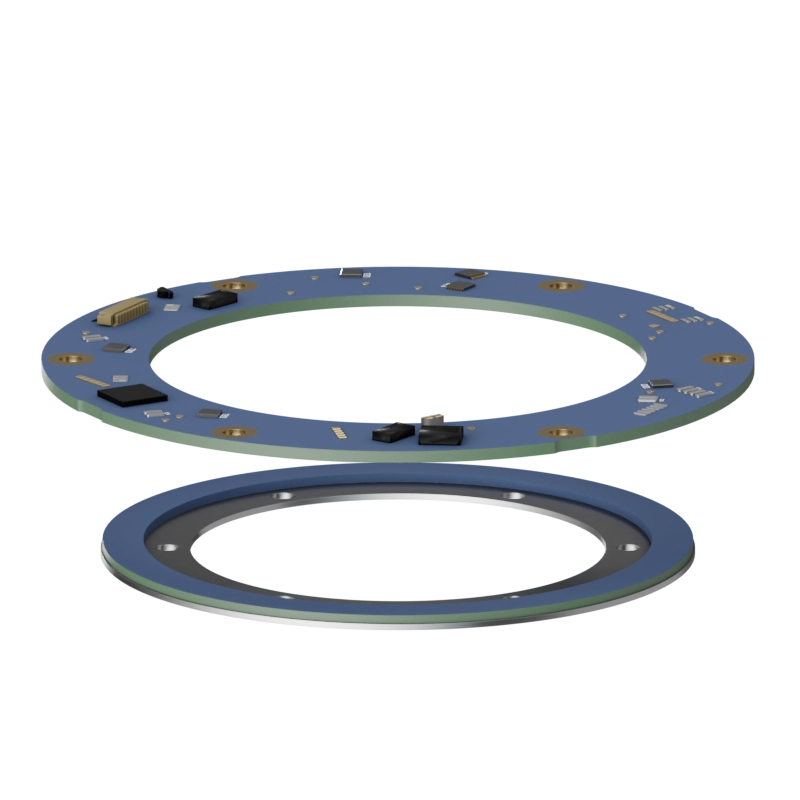

The INDUCTIVE Rotary Encoder by FLUX redefines reliability in tight spaces with its open PCB design. Unyielding and compact, this encoder delivers the highest quality in an ultra-lightweight, flat form. Utilizing FLUX's patent-pending inductive technology, it boasts exceptional immunity to magnetic and electromagnetic interference, making it the perfect fit for the smallest spaces. Discover unmatched reliability and precision where size meets exceptional performance.

Advantages

  • Plug-n-play
  • No field calibration required
  • Wide mounting tolerances
  • High accuracy

Benefits

  • Low installation cost
  • Low integration effort
  • Easy installation

At your service

Need help in selecting the right product ?

Need more information ?
Contact us

System Data

IND-ROT-096-A21
Type Axial, frameless, true absolute INDUCTIVE encoder INDUCTIVE-ROTARY-FLUX GmbH (patentpending)
Standard Resolution 22 bits, 1’048’576 4’194’304 ppr(beforex4) cpr(afterx4)
ENOB in entire mounting tolerance range 20 bits
High Accuracy Enhanced accuracy can be achieved depending on the mounting setup
Standard Accuracy ±45”,±0.012°, ±210µrad
Thickness 5.80
Hysteresis none
Repeatability 1 resolution count
Position update rate and signal latency Real-time
Power-up Time max. 0.8 sec

Electrical Data

Supply voltage Option5V:min.4.35Vdc.max.6Vdc
Reverse polarity protection yes
Current Consumption max.100mA@ 5Vdc, max. 30mA@24Vdc

Mechanical Data

Stator Base Material FR4 (CTE~18ppm/°C)
Stator Weight 12.00 g
Rotor Base Material Stainless steel (CTE~10ppm/°C)
Rotor Weight 18.00 g
Vibration EN 60068-2-6, 20 g, 55 .. 2000 Hz
Shock EN 60068-2-27, 200 g, 6 ms

Mounting Tolerances

Nominal Axial (air-gap) 0.50 mm
Axial Tolerance 0.30 mm (0.20 mm to 0.80 mm)
Radial Tolerances 0.20 mm

Environmental Data

Temperature Range - Standard Operating -20°C .. +85°C
Temperature Range - Standard Storage -20°C .. +85°C
Temperature Range - Extended Operating -40°C .. +105°C
Temperature Range - Extended Storage -55°C .. +125°C
Ingress Protection IP00
EMC Immunity complies with EN IEC 61000-6-2
EMC Emission complies with EN IEC 61000-6-4
