Robot Manual Tool Changers| Medium Payload |SHS100
Optimize your processes with the SHS050: the fast and reliable tool changer for uninterrupted production.

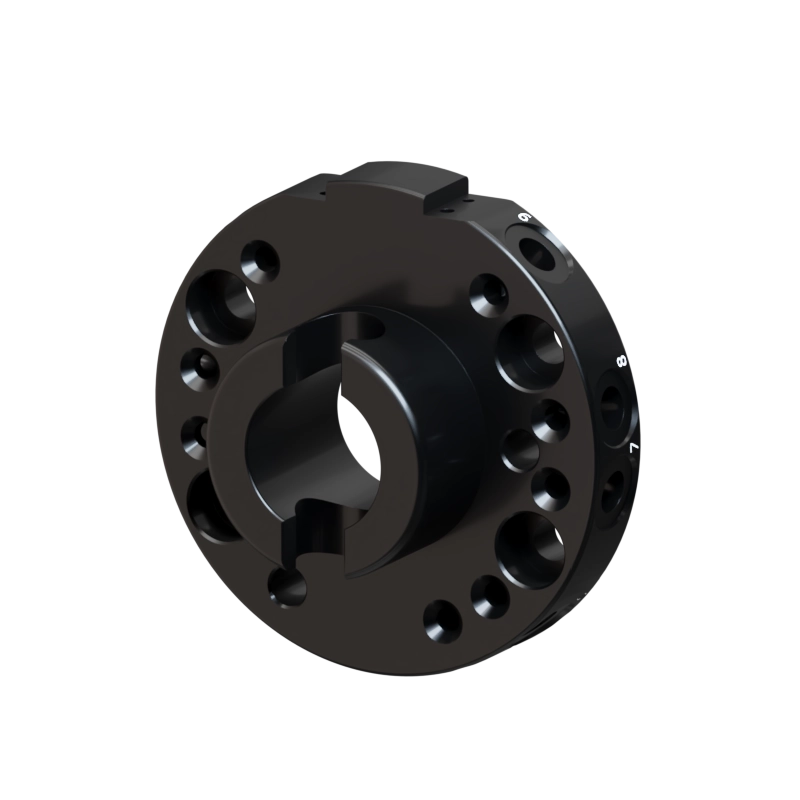

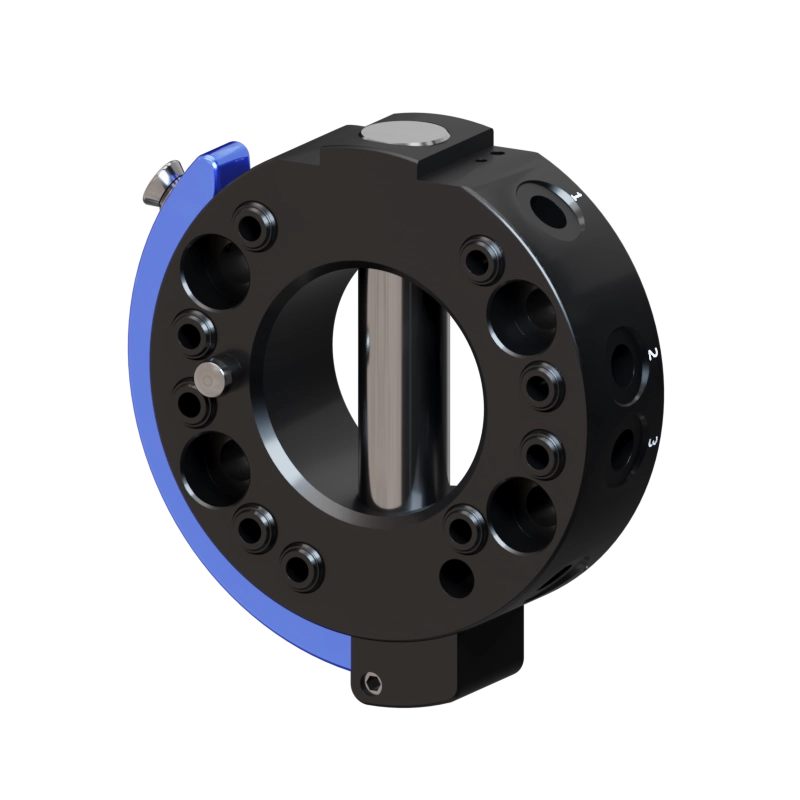

The SHS Connector is equipped with integrated pneumatic feedthroughs, with electrical feedthroughs being optional. The Connector consists of a cylindrical bolt which locks the upper and lower assemblies. Closing the lever to lock, cinches the two assemblies together. A centering disc can be installed on both the upper assembly (robot side) and lower assembly (tool side) and ensures that the tools are correctly aligned with the robot arm.
The SHS100 tool changer is designed to facilitate quick equipment changes in various industrial applications. Acting as a reliable and repeatable mechanical connector, it allows for easy robot tool changes or tool holder mobility. This device enhances the versatility and scalability of your systems while reducing downtime. With its easy installation and integrated pneumatic feedthroughs, it easily replaces the SHA-100-000-000 model, ensuring compatibility with SCHUNK-0310431 SHA-080-000-000 and SCHUNK-0310430 SHK-080-000-0000, guaranteeing consistent performance and time savings during maintenance operations.
Advantages
- Withstands high loads with low dead weight
- Can be released and closed with one handle
- During locking, the lower assembly is pulled around the locking stroke
- Interface according to DIN EN ISO 9409-1
Benefits
- Does not require a deep review of the echanical structure to be integrated.
- Cost savings through reduced maintenance downtime.
- Improved equipment versatility and upgradability and then extended productivity.
- Mitigate the need of specifically designed mounting interfaces
