Optimize your processes with the SHS050: the fast and reliable tool changer for uninterrupted production.

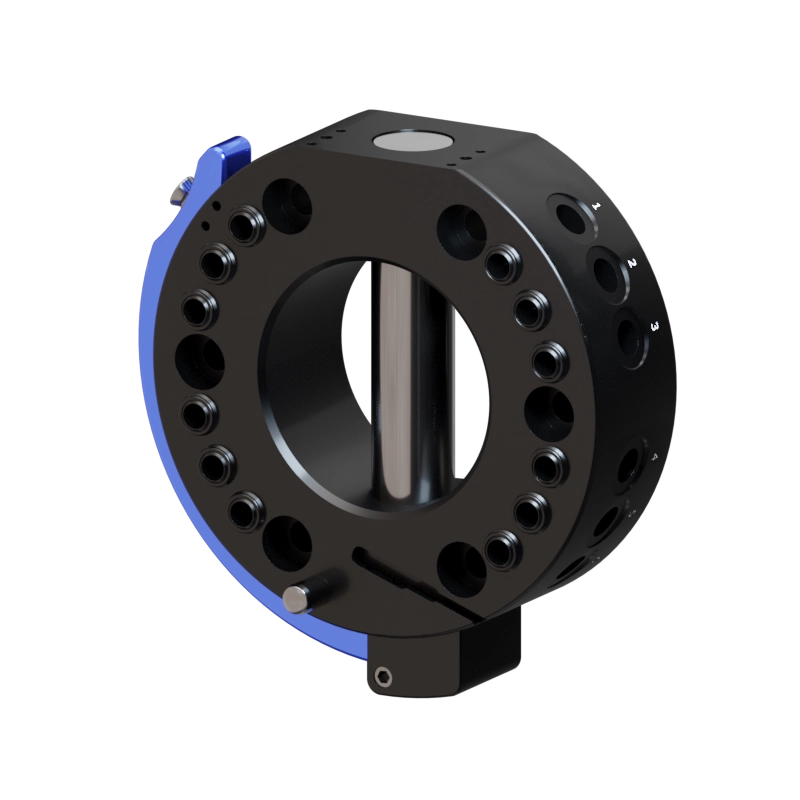

Robot-side view of the SHS160 tool changer

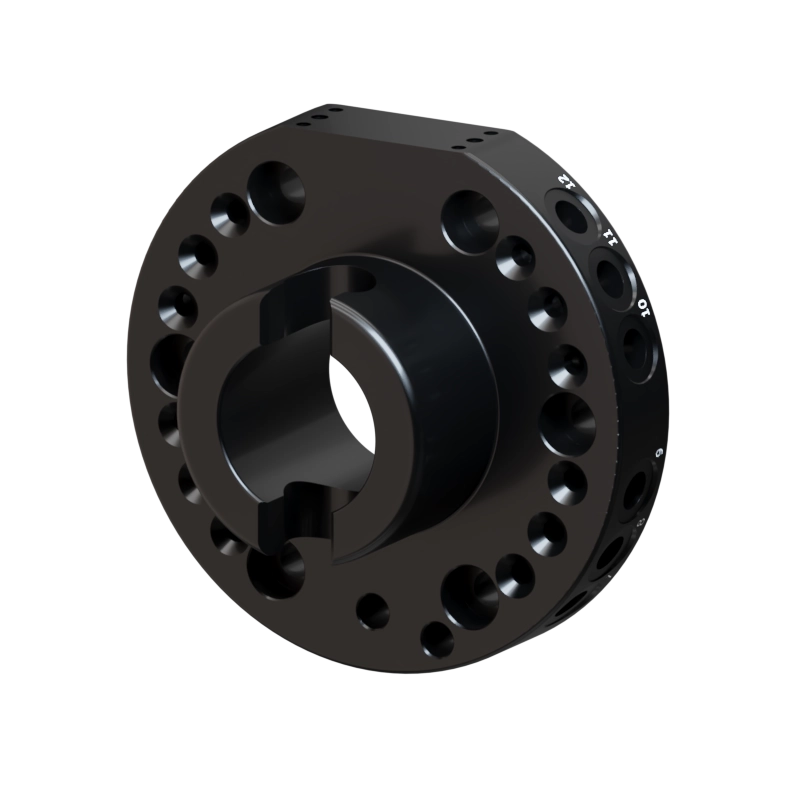

Tool-side view of the SHS160 tool changer

The SHS Connector is equipped with integrated pneumatic feedthroughs, with electrical feedthroughs being optional. The Connector consists of a cylindrical bolt which locks the upper and lower assemblies. Closing the lever to lock, cinches the two assemblies together. A centering disc can be installed on both the upper assembly (robot side) and lower assembly (tool side) and ensures that the tools are correctly aligned with the robot arm.


The SHS160 tool changer is designed to facilitate quick equipment changes in various industrial applications. Acting as a reliable and repeatable mechanical connector, it allows for easy robot tool changes or tool holder mobility. This device enhances the versatility and scalability of your systems while reducing downtime. With its easy installation and integrated pneumatic feedthroughs, it easily replaces the SHA-160-000-000 model, ensuring compatibility with SCHUNK 310450 SHK-125-000-000 and SCHUNK 310451 SHA-125-000-000, guaranteeing consistent performance and time savings during maintenance operations.

Advantages

  • Withstands high loads with low dead weight
  • Can be released and closed with one handle
  • During locking, the lower assembly is pulled around the locking stroke
  • Interface according to DIN EN ISO 9409-1

Benefits

  • Does not require a deep review of the echanical structure to be integrated.
  • Cost savings through reduced maintenance downtime.
  • Improved equipment versatility and upgradability and then extended productivity.
  • Mitigate the need of specifically designed mounting interfaces

SHS160 SHS160-N
Recommended load 52 / 68kg
Basic material AL, Anod. Al. anod
Repeat accuracy 0,02 mm
External diameter x Height 160 x 78 mm
Pitch circle diameter 125 mm
Tension Fz 3000 N
Compression -Fz 626 kN
Torsion Mz 2325 Nm
Bending Mx 960 Nm
Bending My 960Nm
Locking stroke VH 0 - 1 mm
Mass upper 2.42kg
Mass lower 1.45kg
Locking Force VF 10 - 100 mm

Operating conditions

Operating temperature range -30 to +120 °C
Operating pressure 6 bar ±1

Notice: The provided technical data are the higher limits recommended in static condition. To obtain the correct dimensioning of the product, it is necessary to hold account of all the applicable dynamic forces, including the inertia of the manipulator, the configuration of the tools and the external forces applied.

SHS160.zip (2.44 MB)

The manual Tool Changers are designed and manufactured by GRIP Gmbh.
Product Engineering Services is the Distributor of GRIP for the territory of Belgium and France
