SVTN A 01
The benefits of this new technology are torque and high-speed when compared to same sizing. The lack of cogging, a reduced ripple torque, a linear correlation between speed and torque, low inertia bring perfomance to greater level in terms of power, dynamics by means of reduced weights and reduced dimensions.
Servotecnica’s brushless motors apply hall sensors as a standard option, in addition to having the magnetic encoder option. Thanks to the sensors it is possible to control rotation speed, and, thanks to the lack of cogging, provide high performance and accuracy.

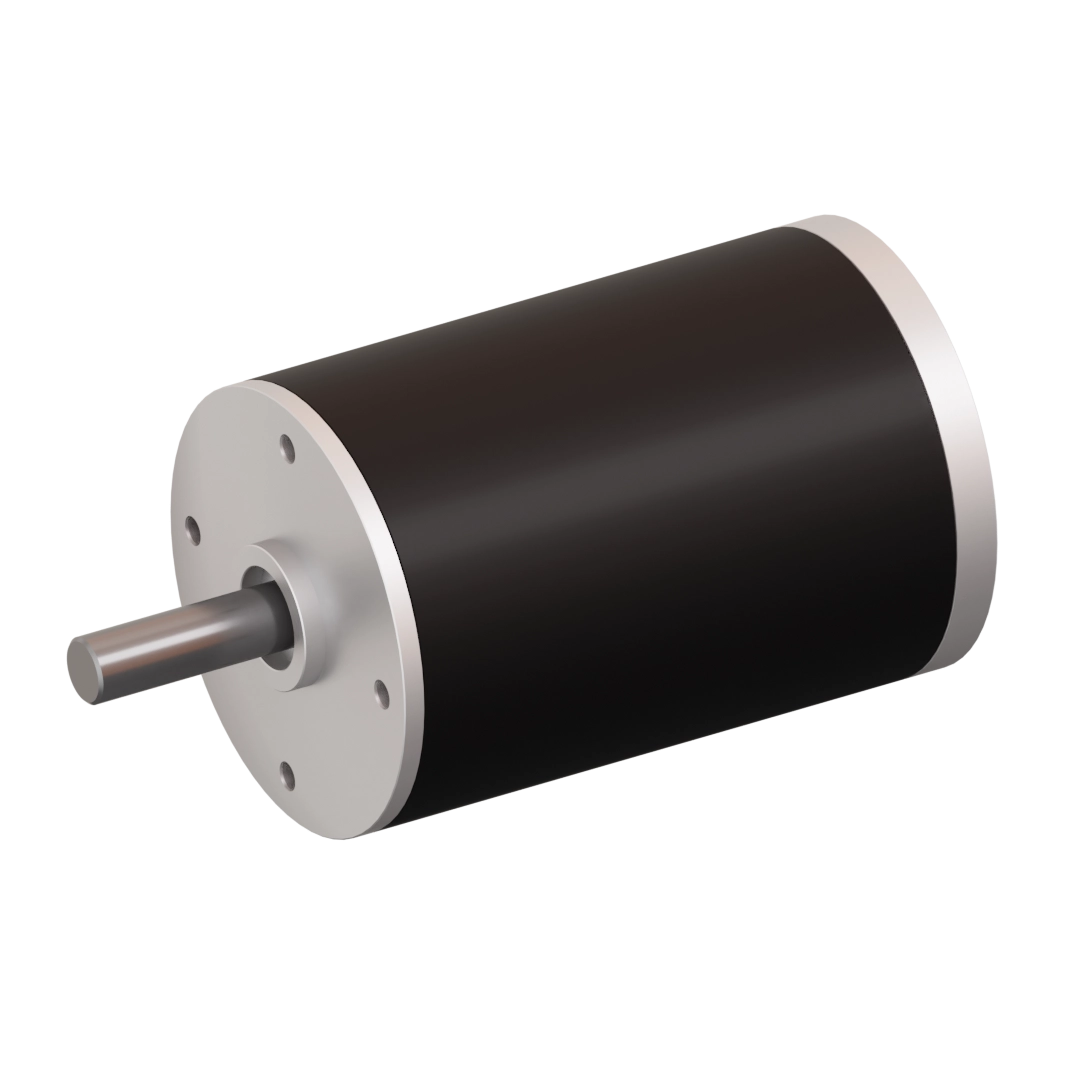

SVTN A 01-4058-48-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
338.0 g
40 mm
6 986 rpm
85.00 mNm
SVTN A 01-4058-48-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
338.0 g
40 mm
6 986 rpm
85.00 mNm

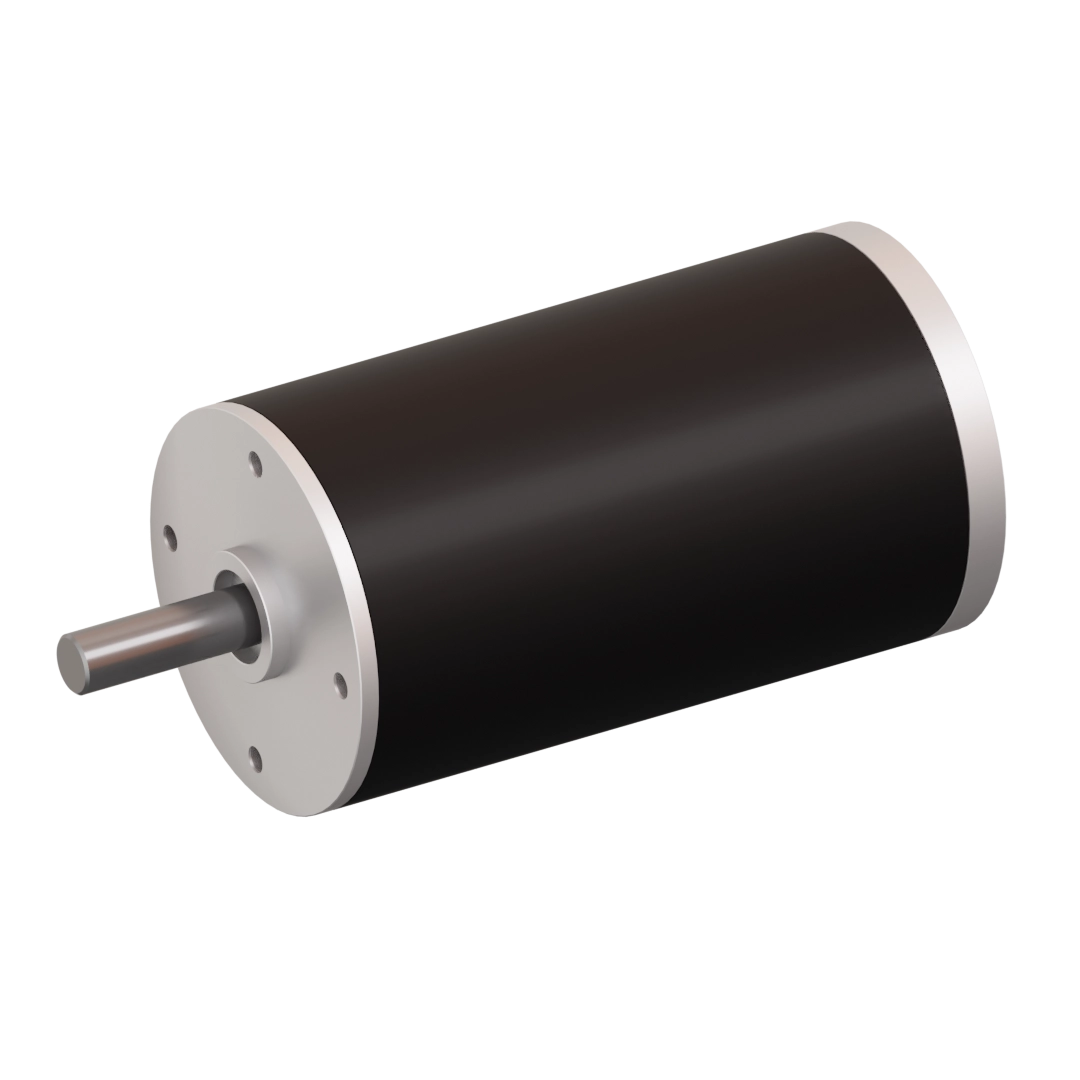

SVTN A 01-4070-12-S-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
5 084 rpm
130.00 mNm
SVTN A 01-4070-12-S-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
5 084 rpm
130.00 mNm
SVTN A 01-4070-12-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
5 084 rpm
130.00 mNm
SVTN A 01-4070-12-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
5 084 rpm
130.00 mNm
SVTN A 01-4070-24-S-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 304 rpm
130.00 mNm
SVTN A 01-4070-24-S-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 304 rpm
130.00 mNm
SVTN A 01-4070-24-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 304 rpm
130.00 mNm
SVTN A 01-4070-24-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 304 rpm
130.00 mNm
SVTN A 01-4070-36-S-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 266 rpm
130.00 mNm
SVTN A 01-4070-36-S-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 266 rpm
130.00 mNm
SVTN A 01-4070-36-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 266 rpm
130.00 mNm
SVTN A 01-4070-36-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 266 rpm
130.00 mNm
SVTN A 01-4070-48-S-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 238 rpm
130.00 mNm
SVTN A 01-4070-48-S-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 238 rpm
130.00 mNm
SVTN A 01-4070-48-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 238 rpm
130.00 mNm
SVTN A 01-4070-48-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
415.0 g
40 mm
7 238 rpm
130.00 mNm
SVTN A 01-4088-24-S-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 299 rpm
200.00 mNm
SVTN A 01-4088-24-S-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 299 rpm
200.00 mNm
SVTN A 01-4088-24-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 299 rpm
200.00 mNm
SVTN A 01-4088-24-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 299 rpm
200.00 mNm
SVTN A 01-4088-36-S-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 379 rpm
200.00 mNm

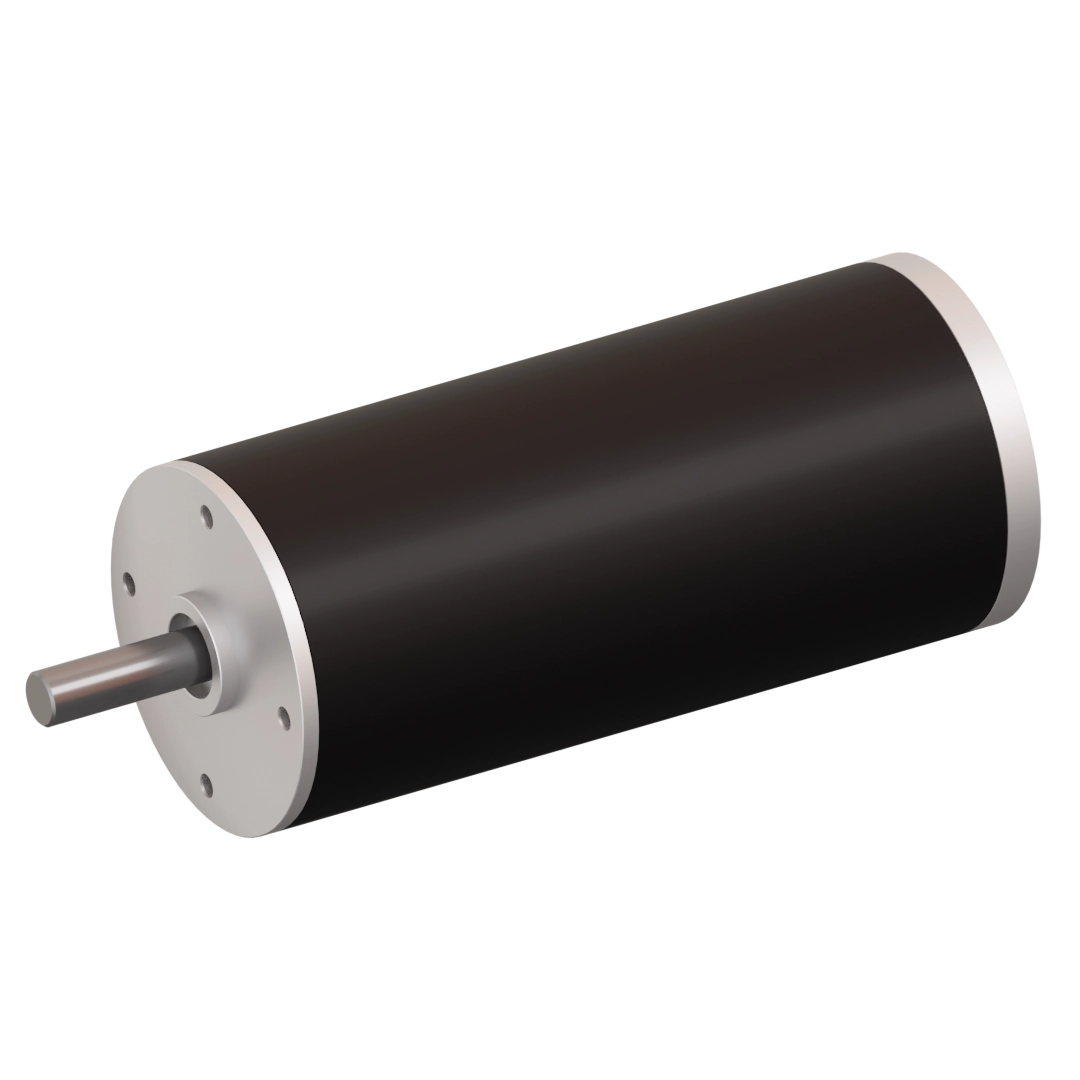

SVTN A 01-4088-36-S-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 379 rpm
200.00 mNm
SVTN A 01-4088-36-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 379 rpm
200.00 mNm
SVTN A 01-4088-36-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 379 rpm
200.00 mNm
SVTN A 01-4088-48-S-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 452 rpm
200.00 mNm
SVTN A 01-4088-48-S-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 452 rpm
200.00 mNm
SVTN A 01-4088-48-D-OCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
571.0 g
40 mm
7 452 rpm
200.00 mNm
SVTN A 01-4088-48-D-HCoreless BLDC motors
2 Pole Brushless DC Motors
Coreless BLDC motor. High Power Density - High Efficiency - Cost Effective Low noise - Low inductance - Good Heat Dissipation Long Lifetime - No Cogging - Low Inertia - Robust
