Rotary Union| 1 passage |SCS(M) 608010

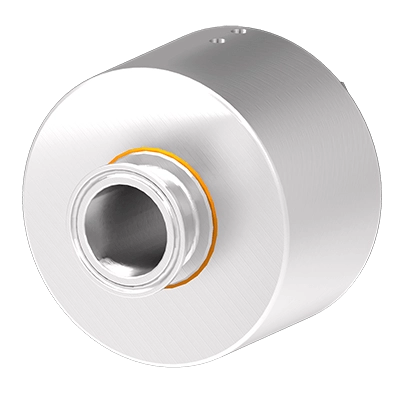

Food-grade rotary union, tri-clamp ferrule connections

The SCSM Series rotary unions feature tri-clamp ferrule connections and an FDA approved design for use with CIP (Clean-in-Place) systems.
The SCSM Series are engineered to minimize fluid stagnation points with smooth flow lines for clean fluid transfer. Specialized bearings are located in a sealed chamber designed keep lubricants in and contaminants out. The SCSM series feature food grade seals and bearing lubricant.

Advantages

  • Long oprating lifetime
  • Permanent lubrication bearings
  • CIP capability

Benefits

  • Avoid the need of complex piping arrangements
  • Increased machinery performances
  • Paiping maintenance mitigated

At your service

Need help in selecting the right product ?

Need more information ?
Contact us

SCS(M) 608010
TypeSanitary Tri-clamp
Passages1 passage
Overall Diameter
112.8 mm
Overall length
117.9 mm
Min Torque
4.52 Nm
Passage Size
34.8 mm
Maximum Pressure11.5 MPa (15 bar)
Maximum Vaccum124 HG
Max Speed175 rpm
Temperature Range1-18°C à 105°C

1Values are dependent on a combination of all application parameters. Please consult PES.
2Applications with temperatures above 105°C require alternative seal materials. Please consult PES.

General information

SCS(M) 608010
Connection SizesDN15, DN20, DN32, DN50, DN65, DN80, DN100
Connection typeDIN 32676 & ASME-BPE connections available
Plating and CoatingShaft/Housing : 316 Stainless Steel
MountingThe SCS Series rotary unions connect at the ferrule clamp connection inlet and outlet

Notice :The provided technical data are the higher limits recommended in static condition. To obtain the correct dimensioning of the product, it is necessary to hold account of all the applicable dynamic forces, including the inertia of the manipulator, the configuration of the tools and the external forces applied.

Drawings
SCS(M)-608010.pdf (61.89 KB)
Steps
SCS(M)-608010.zip (45.79 KB)
