Slip Ring | 54 circuits | SVTS C 08-U-A-18/36
A generous through-bore to free up mechanical design

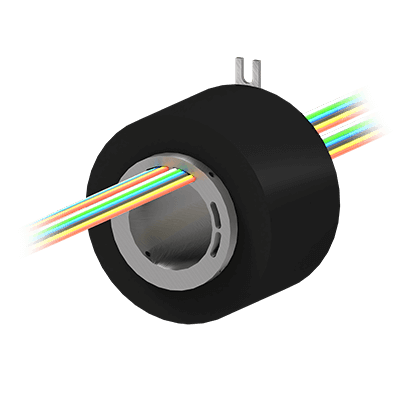

The SVTS C08 is a through-bore slip ring designed to transmit a large number of power and signal circuits through a continuously rotating axis. Its 70 mm through-bore allows a shaft, cables or other mechanical elements to pass through the centre of the slip ring, while its 155 mm outer diameter provides a high electrical circuit capacity.
Depending on configuration, the SVTS C08 can combine 20 A power circuits and 5 A signal circuits. Available configurations provide up to 48 power circuits or up to 96 signal circuits, as well as numerous intermediate combinations to meet the requirements of the machine.
Its multipoint contact technology provides multiple contact points between brushes and rings to maintain low electrical contact resistance, reduce electrical noise and limit contact wear. No lubrication is required.
Thanks to its 70 mm through-bore and high circuit capacity, the SVTS C08 is particularly suitable for rotary tables, indexing systems, automated machinery and industrial equipment requiring a large number of power and signal connections between stationary and rotating parts.
Advantages
- 70 mm through-bore
- 155 mm outer diameter
- Up to 96 circuits depending on configuration
- 20 A power circuits
- 5 A signal circuits
- Up to 48 power circuits or 96 signal circuits
- Wide range of combined power and signal configurations
- Multipoint contact technology
- Low electrical contact resistance and low electrical noise
- Reduced wear and lubrication-free operation
- Compliant to CE and RoHS
Benefits
- Maintains a 70 mm central passage for large mechanical components or cable bundles
- Allows numerous power and signal circuits to be transmitted around the same axis
- Meets the needs of equipment whose shaft or through-connections exceed the capacity of smaller-bore slip rings
- Maintains high electrical capacity while leaving a substantial part of the axis available for mechanical components
