Slip Ring | 84 circuits | SVTS C 09-U-A-00/84
Preserve a wide central axis while consolidating connections

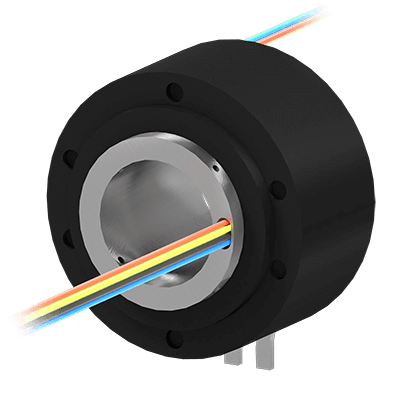

The SVTS C09 is a through-bore slip ring designed to transmit a large number of power and signal circuits through a continuously rotating axis. Its 80 mm through-bore allows a shaft, cables or other mechanical elements to pass through the centre of the slip ring, while its 180 mm outer diameter provides capacity for up to 96 electrical circuits.
Depending on configuration, the SVTS C09 can combine 20 A power circuits and 5 A signal circuits. Available configurations provide up to 48 power circuits rated at 20 A or up to 96 signal circuits rated at 5 A, as well as numerous intermediate combinations.
The multipoint contact technology used in the SVTS C Series provides multiple contact points between brushes and rings to maintain low electrical contact resistance, reduce electrical noise and limit contact wear. No lubrication is required.
Thanks to its 80 mm through-bore and high circuit capacity, the SVTS C09 is particularly suitable for rotary tables, indexing systems, automated machinery and industrial equipment requiring a large number of power and signal connections between stationary and rotating parts.
Advantages
- 80 mm through-bore
- 180 mm outer diameter
- Up to 96 circuits depending on configuration
- 20 A power circuits
- 5 A signal circuits
- Up to 48 power circuits or 96 signal circuits
- Wide range of combined power and signal configurations
- Multipoint contact technology
- Low electrical contact resistance and low electrical noise
- Reduced wear and lubrication-free operation
- Compliant to CE and RoHS
Benefits
- Allows a shaft or through-assembly up to 80 mm to pass through the center of the slip ring
- Maintains numerous electrical circuits around a large mechanical axis
- Meets the needs of machines where the diameter of the through-element becomes a major design constraint
- Avoids relocating electrical transmission around a large central axis
