Slip Ring| 30 circuits |SVTS C 09-U-A-06/24

Through hole, I.D. 80.0 mm, O.D. 180.0 mm, 6 to 96 circuits and more

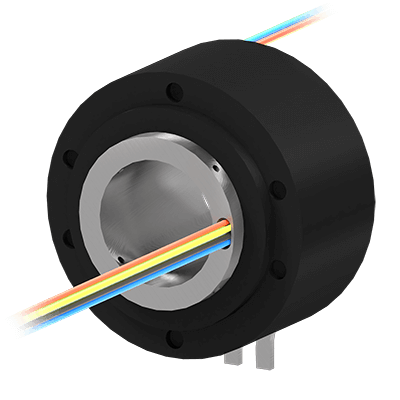

Image of : [commerce_product:title]
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
View catalog

The SVTS C 09 series is charaterized by a through hole and uses a special technology.

It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. No lubrication required.

Advantages

  • Ideal for electrical power and signal transmission
  • Through hole 80 mm
  • High data rate
  • Low friction torque
  • High lifetime and reliability
  • Compliant to CE and ROHS

Benefits

  • Transmission of electric power/signals and fieldbuses in one unit
  • Mountable on the shaft mitigating the need of interface parts
  • Combinable with fluidic rotary joints and FORJ
  • Cost-effective

At your service

Need help in selecting the right product ?

Need more information ?
Contact us

SVTS C 09-U-A-06/24
Circuits24 x 5A, 6 x 20A
Outside Diameter180.0 mm
Inside Diameter80.0 mm
Overall Length (L)168.0 mm
Protection ratingIP 65
Data Transfert<=100Mbit/s
MountingThru-bore 80mm

Mechanical features

Nominal speed>400 rpm
Temperature range-20°C to +80°C (-40°C as option)
Contactgold-gold (alloy)
BearingsMiniature high-precision stainless steel ball bearings
Connector-
MountingABS

Electrical features

VoltagePower : 600 VDC/VAC
Signals : 240VDC/VAC
CablesSilver plated / PTFE insulated / colour coded
Cables length250 mm standard (other length on request)
Dielectric voltage strength500VAC @ 60Hz @ 60 sec
Insulation resistance>500MOhm/500VDC
Dynamic contact resistance<10mOhm @ 6VDC and 500mA (@ 5rpm)
Expected lifetime107 revolutions (depending on speed, environmetal conditions and size)

Customisations

  • Cables
  • Materials
  • Mechanical design
  • Flange

Notice :The provided technical data are the higher limits recommended in static condition. To obtain the correct dimensioning of the product, it is necessary to hold account of all the applicable dynamic forces, including the inertia of the manipulator, the configuration of the tools and the external forces applied.
