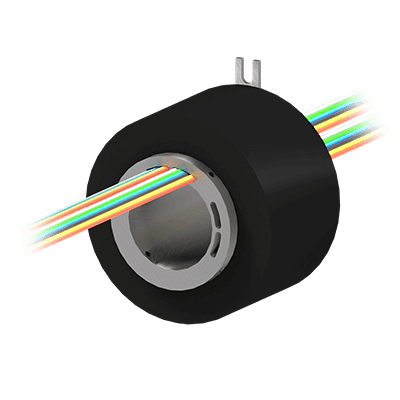

SVTS C
The SVTS C series is charaterized by a through hole and uses a special technology.
It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. No lubrication required.
|
|
Options
* Customizable
SVTS C 07-S-A-12/0012 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-12/00 is a through-bore slip ring with a 60 mm bore combining 12 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection. It provides numerous power channels…
>400 rpm
12 x 20A
IP51
135.0 mm
SVTS C 07-S-A-12/1224 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-12/12 is a through-bore slip ring with a 60 mm bore combining 12 signal circuits rated at 5 A and 12 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
12 x 5A, 12 x 20A
IP51
135.0 mm
SVTS C 07-S-A-12/2436 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-12/24 is a through-bore slip ring with a 60 mm bore combining 24 signal circuits rated at 5 A and 12 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
24 x 5A, 12 x 20A
IP51
135.0 mm
SVTS C 07-S-A-12/3648 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-12/36 is a through-bore slip ring with a 60 mm bore combining 36 signal circuits rated at 5 A and 12 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
36 x 5A, 12 x 20A
IP51
135.0 mm
SVTS C 07-S-A-12/4860 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-12/48 is a through-bore slip ring with a 60 mm bore combining 48 signal circuits rated at 5 A and 12 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
48 x 5A, 12 x 20A
IP51
135.0 mm
SVTS C 07-S-A-12/6072 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-12/60 is a through-bore slip ring with a 60 mm bore combining 60 signal circuits rated at 5 A and 12 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
60 x 5A, 12 x 20A
IP51
135.0 mm
SVTS C 07-S-A-12/7284 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-12/72 is a through-bore slip ring with a 60 mm bore combining 72 signal circuits rated at 5 A and 12 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
72 x 5A, 12 x 20A
IP51
135.0 mm
SVTS C 07-S-A-18/0018 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-18/00 is a through-bore slip ring with a 60 mm bore combining 18 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection. The 60 mm central passage remains…
>400 rpm
18 x 20A
IP51
135.0 mm
SVTS C 07-S-A-18/1230 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-18/12 is a through-bore slip ring with a 60 mm bore combining 12 signal circuits rated at 5 A and 18 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
12 x 5A, 18 x 20A
IP51
135.0 mm
SVTS C 07-S-A-18/2442 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-18/24 is a through-bore slip ring with a 60 mm bore combining 24 signal circuits rated at 5 A and 18 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
24 x 5A, 18 x 20A
IP51
135.0 mm
SVTS C 07-S-A-18/3654 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-18/36 is a through-bore slip ring with a 60 mm bore combining 36 signal circuits rated at 5 A and 18 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
36 x 5A, 18 x 20A
IP51
135.0 mm
SVTS C 07-S-A-18/4866 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-18/48 is a through-bore slip ring with a 60 mm bore combining 48 signal circuits rated at 5 A and 18 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
48 x 5A, 18 x 20A
IP51
135.0 mm
SVTS C 07-S-A-18/6078 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-18/60 is a through-bore slip ring with a 60 mm bore combining 60 signal circuits rated at 5 A and 18 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
60 x 5A, 18 x 20A
IP51
135.0 mm
SVTS C 07-S-A-24/0024 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-24/00 is a through-bore slip ring with a 60 mm bore combining 24 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection. Its current capacity centralises…
>400 rpm
24 x 20A
IP51
135.0 mm
SVTS C 07-S-A-24/1236 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-24/12 is a through-bore slip ring with a 60 mm bore combining 12 signal circuits rated at 5 A and 24 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
12 x 5A, 24 x 20A
IP51
135.0 mm
SVTS C 07-S-A-24/2448 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-24/24 is a through-bore slip ring with a 60 mm bore combining 24 signal circuits rated at 5 A and 24 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
24 x 5A, 24 x 20A
IP51
135.0 mm
SVTS C 07-S-A-24/3660 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-24/36 is a through-bore slip ring with a 60 mm bore combining 36 signal circuits rated at 5 A and 24 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
36 x 5A, 24 x 20A
IP51
135.0 mm
SVTS C 07-S-A-24/4872 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-24/48 is a through-bore slip ring with a 60 mm bore combining 48 signal circuits rated at 5 A and 24 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
48 x 5A, 24 x 20A
IP51
135.0 mm
SVTS C 07-S-A-30/0030 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-30/00 is a through-bore slip ring with a 60 mm bore combining 30 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection. This architecture transmits high…
>400 rpm
30 x 20A
IP51
135.0 mm
SVTS C 07-S-A-30/1242 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-30/12 is a through-bore slip ring with a 60 mm bore combining 12 signal circuits rated at 5 A and 30 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
12 x 5A, 30 x 20A
IP51
135.0 mm
SVTS C 07-S-A-30/2454 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-30/24 is a through-bore slip ring with a 60 mm bore combining 24 signal circuits rated at 5 A and 30 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
24 x 5A, 30 x 20A
IP51
135.0 mm
SVTS C 07-S-A-30/3666 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-30/36 is a through-bore slip ring with a 60 mm bore combining 36 signal circuits rated at 5 A and 30 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
36 x 5A, 30 x 20A
IP51
135.0 mm
SVTS C 07-S-A-36/0036 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-36/00 is a through-bore slip ring with a 60 mm bore combining 36 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection. This architecture transmits high…
>400 rpm
36 x 20A
IP51
135.0 mm
SVTS C 07-S-A-36/1248 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-36/12 is a through-bore slip ring with a 60 mm bore combining 12 signal circuits rated at 5 A and 36 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
12 x 5A, 36 x 20A
IP51
135.0 mm
SVTS C 07-S-A-36/2460 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-36/24 is a through-bore slip ring with a 60 mm bore combining 24 signal circuits rated at 5 A and 36 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
24 x 5A, 36 x 20A
IP51
135.0 mm
SVTS C 07-S-A-42/0042 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-42/00 is a through-bore slip ring with a 60 mm bore combining 42 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection. Its current capacity centralises…
>400 rpm
42 x 20A
IP51
135.0 mm
SVTS C 07-S-A-42/1254 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-42/12 is a through-bore slip ring with a 60 mm bore combining 12 signal circuits rated at 5 A and 42 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection.…
>400 rpm
12 x 5A, 42 x 20A
IP51
135.0 mm
SVTS C 07-S-A-48/0048 circuits
More central space for complex rotating architectures
The SVTS C 07-S-A-48/00 is a through-bore slip ring with a 60 mm bore combining 48 power circuits rated at 20 A, with a 135 mm outer diameter and IP51 protection. The 60 mm central passage remains…
>400 rpm
48 x 20A
IP51
135.0 mm
SVTS C 07-T-A-00/1212 circuits
More central space for complex rotating architectures
The SVTS C 07-T-A-00/12 is a through-bore slip ring with a 60 mm bore combining 12 signal circuits rated at 5 A, with a 135 mm outer diameter and IP54 protection. It concentrates numerous signal…
>400 rpm
12 x 5A
IP54
135.0 mm
SVTS C 07-T-A-00/2424 circuits
More central space for complex rotating architectures
The SVTS C 07-T-A-00/24 is a through-bore slip ring with a 60 mm bore combining 24 signal circuits rated at 5 A, with a 135 mm outer diameter and IP54 protection. Its through-bore preserves a large…
>400 rpm
24 x 5A
IP54
135.0 mm
