Manual Robotic Tool Changers| Hybrid Interfaces Modules |MEK063-6PM5-1E12

Sous titre

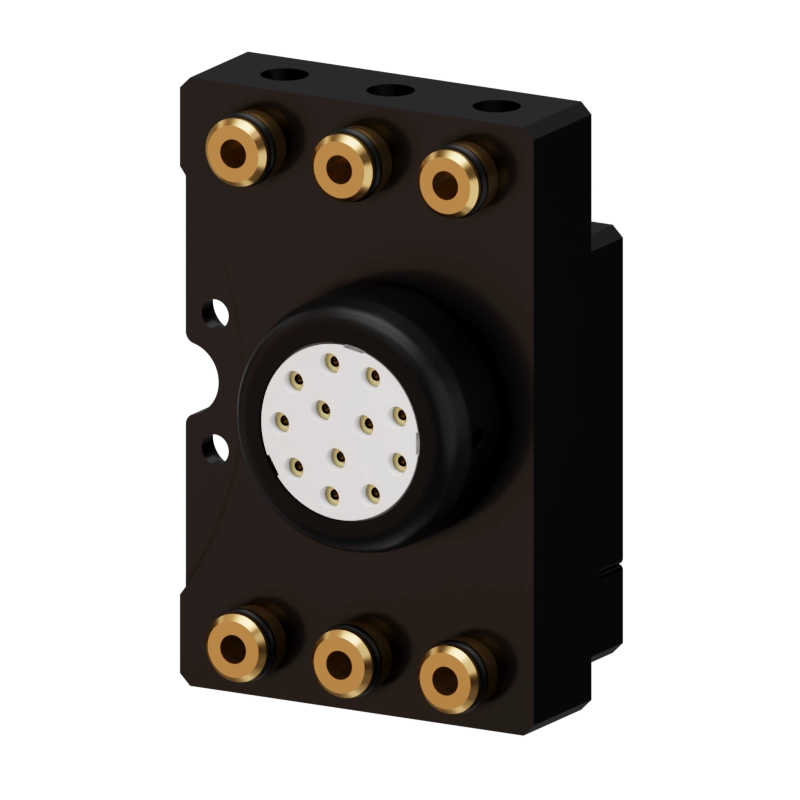

MEK063-6PM5-1E12 the ultimate solution for pneumatic and electric hybrid connection

Meet the MEK063-6PM5-1E12, the latest innovation in the 6-way MEK series. Thanks to its horizontal configuration, this multi-function connector offers a lower profile while offering simultaneous pneumatic and electrical connections.

Discover the MEK-PM Multi-Energy-Coupling, an evolution of the MEK series. Pneumatic and electrical connections are arranged horizontally, providing easy integration for your projects. This system also allows simultaneous mechanical, electrical and pneumatic connection for optimal use. Available in versions with 3 or 6 air passages and 12 electrical passages, the MEK-PM is compatible with metric pneumatic fittings. Simplify your connection process with the MEK-PM Multi-Energy-Coupling.

Advantages

Benefits

  • Increased productivity with robust connectors
  • Great flexibility in output connectors
  • Reduced maintenance times with a high cycle rate

Related industries

At your service

Need help in selecting the right product ?

Need more information ?
Contact us


MEK063-6PM5-1E12
Operating temperature-30 to +120 °C
TypeHybrid Interfaces Modules
Protection ratingIP40
Weight0.1100.060
Contact durability50000 cycles
MaterialsAl, anod.
Operating pressure-1 to 8 bar
Pneumatic Ducts6 x M5
Electrical Ducts
12 x 9A (63V, 3mΩ)
6 x 20A (125V, 1.3mΩ)

Notice :The provided technical data are the higher limits recommended in static condition. To obtain the correct dimensioning of the product, it is necessary to hold account of all the applicable dynamic forces, including the inertia of the manipulator, the configuration of the tools and the external forces applied.

No files actually

For more informations

Contact us

No files actually

For more informations

Contact us

The manual Tool Changers are designed and manufactured by GRIP Gmbh.
Product Engineering Services is the Distributor of GRIP for the territory of Belgium and France
