Brushless or brushed micro motors without EMI interference

PES S.A. micromotors offer is designed and manufactured by Servotecnica who is taking advantage from its long experience in the motion-control field to bring into the market a micromotors range with the right quality/cost balance that was missing for a long time. In the catalog, we can find both brushless micromotors and brushed DC micromotors.

Brushless micromotors offer lasting performances thanks to the lack of brushes that are subject to wear and can put the motor out of service. Other typical benefits of this technology are: high dynamic (high speed and acceleration), noise reduction and low electromagnetic interferences (EMI). They were considered for year as an expensive alternative to traditional brushed motors for low power applications but brushless micromotors are now very competitive and offer high performances.

Brushed micromotors are equipped with graphite brushes, their special design consists of a coreless winding. This offers several benefits such as less mass and inertia enabling high accelerations or decelerations. Furthermore, the lack of iron reduces “iron losses” to provide higher efficiencies (up to 90 percent) than traditional DC motors. Last, but not least, the coreless design reduces winding inductance, so sparking between the brushes and commutator is reduced, increasing motor life and reducing electromagnetic interference (EMI).

PDF - catalog - Micromotors

PES SA SVTN A coreless brushless micromotor – Compact, high-performance, zero cogging

Series

All models of SVTN A micromotors category

SVTN A
Coreless BLDC motors
Diameter : 12 to 40 mm
Length : 20 to 83 mm
Speed : 8000 to 50000 rpm
Torque : 1,5 to 200 mNm
Weight : 9,8 to 571 g

All models of SVTN B micromotors category

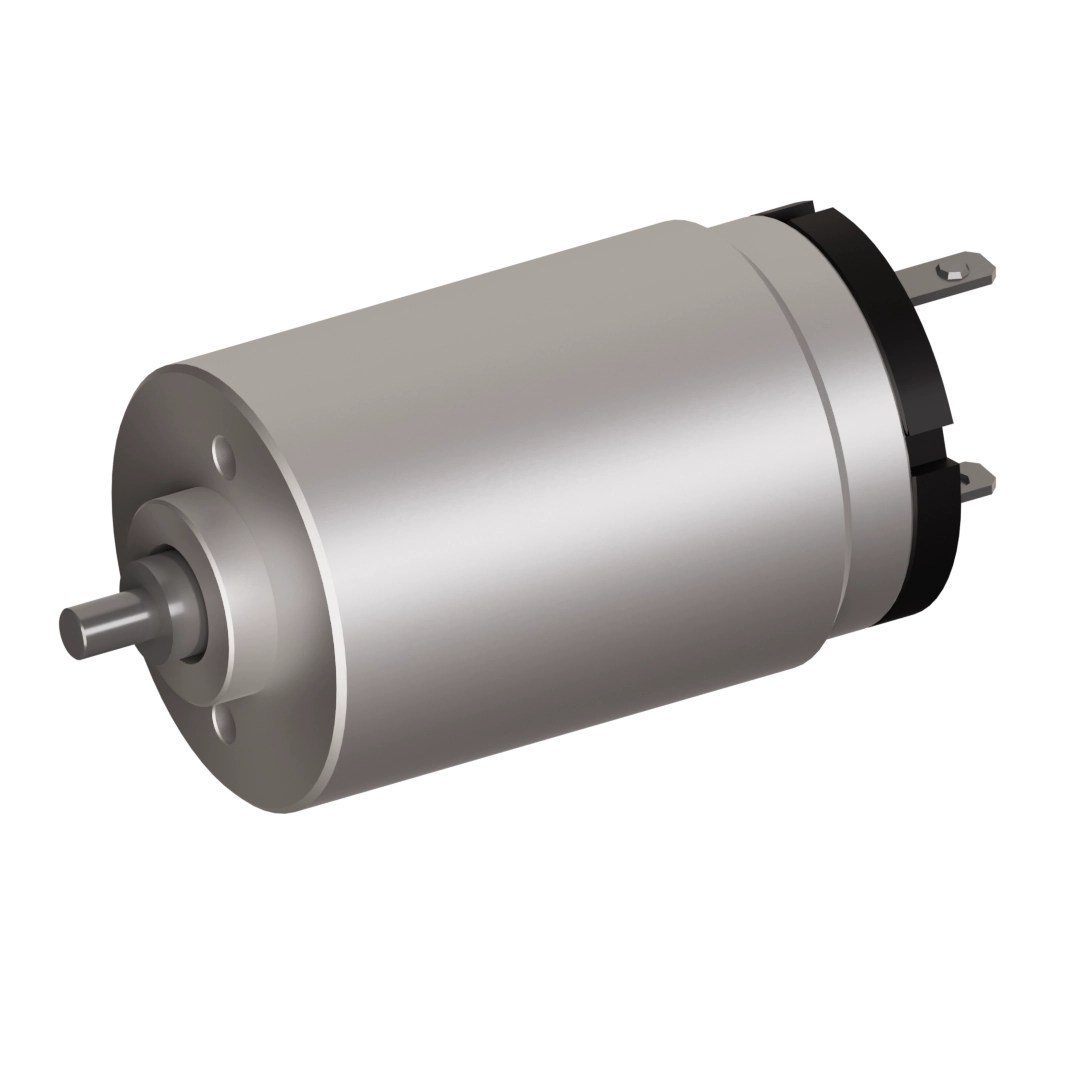

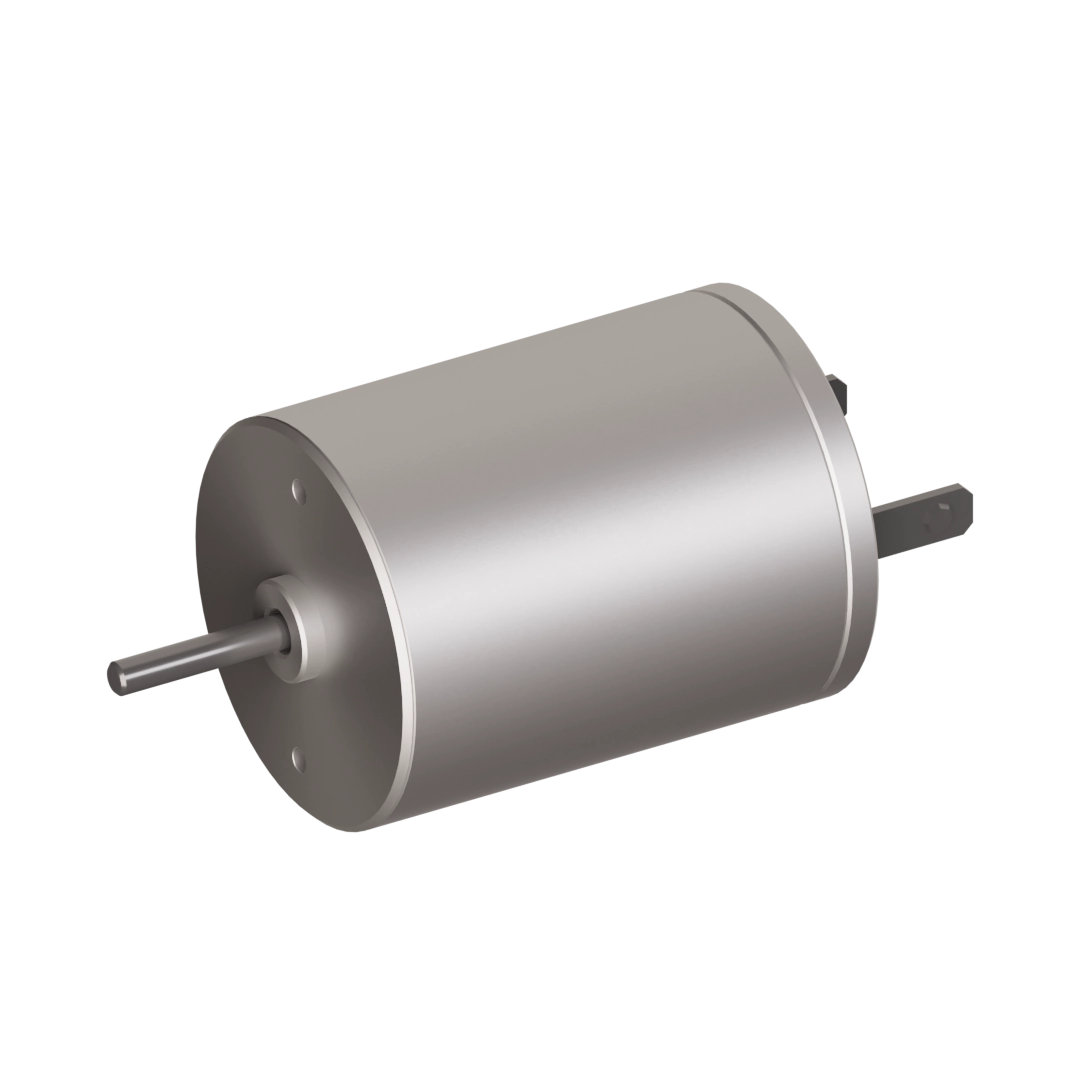

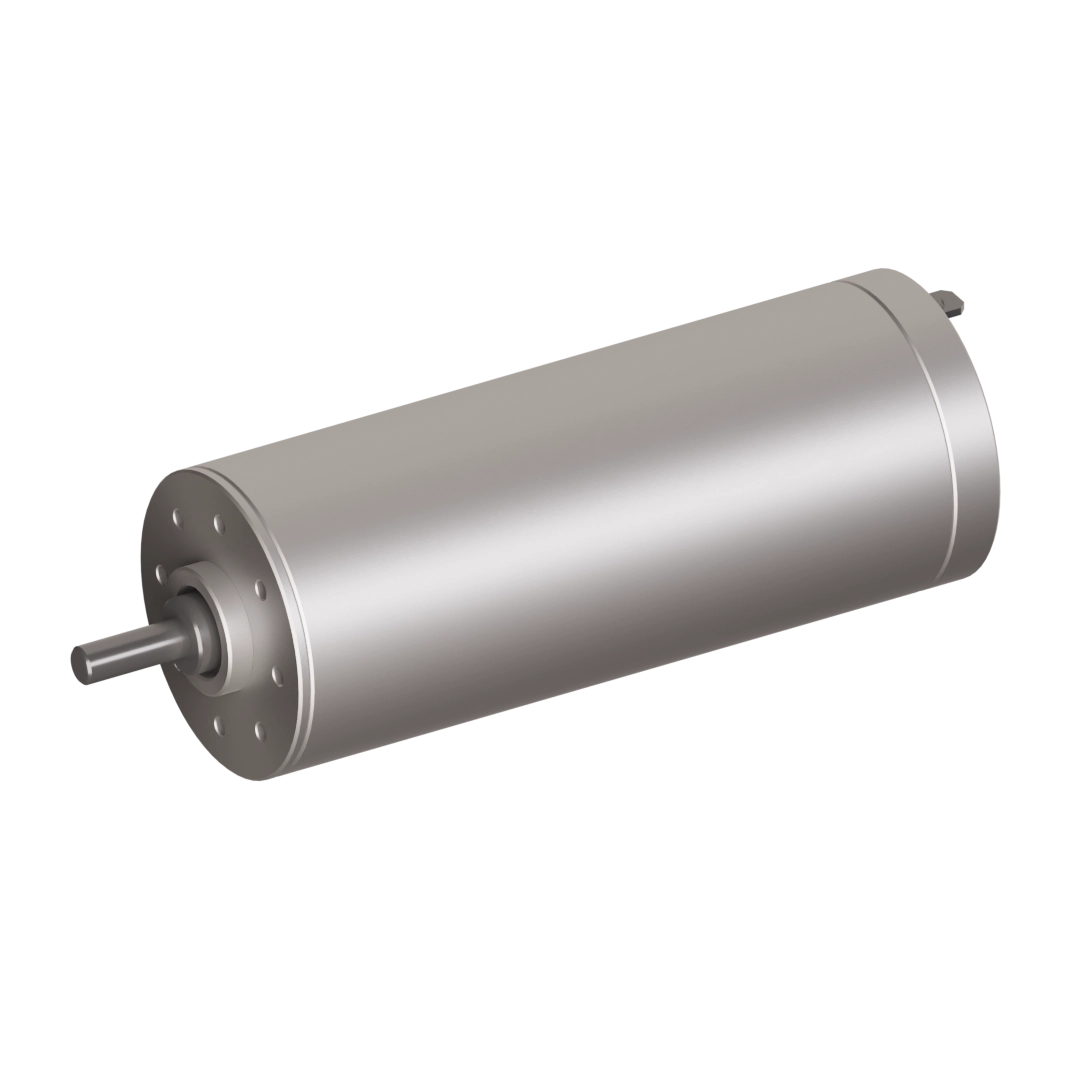

SVTN B
Coreless DC motors
Diameter : 12 to 40 mm
Length : 20 to 70 mm
Speed : 8000 to 34000 rpm
Torque : 0,5 to 200 mNm
Weight : 6,9 to 485 g

All models of SVTN F micromotors category

SVTM F
Flat Brushless DC Motors
Diameter : 12 to 40 mm
Length : 20 to 83 mm
Speed : 8000 to 50000 rpm
Torque : 1,5 to 200 mNm
Weight : 9,8 to 571 g

Affichage 451 - 500 sur 992

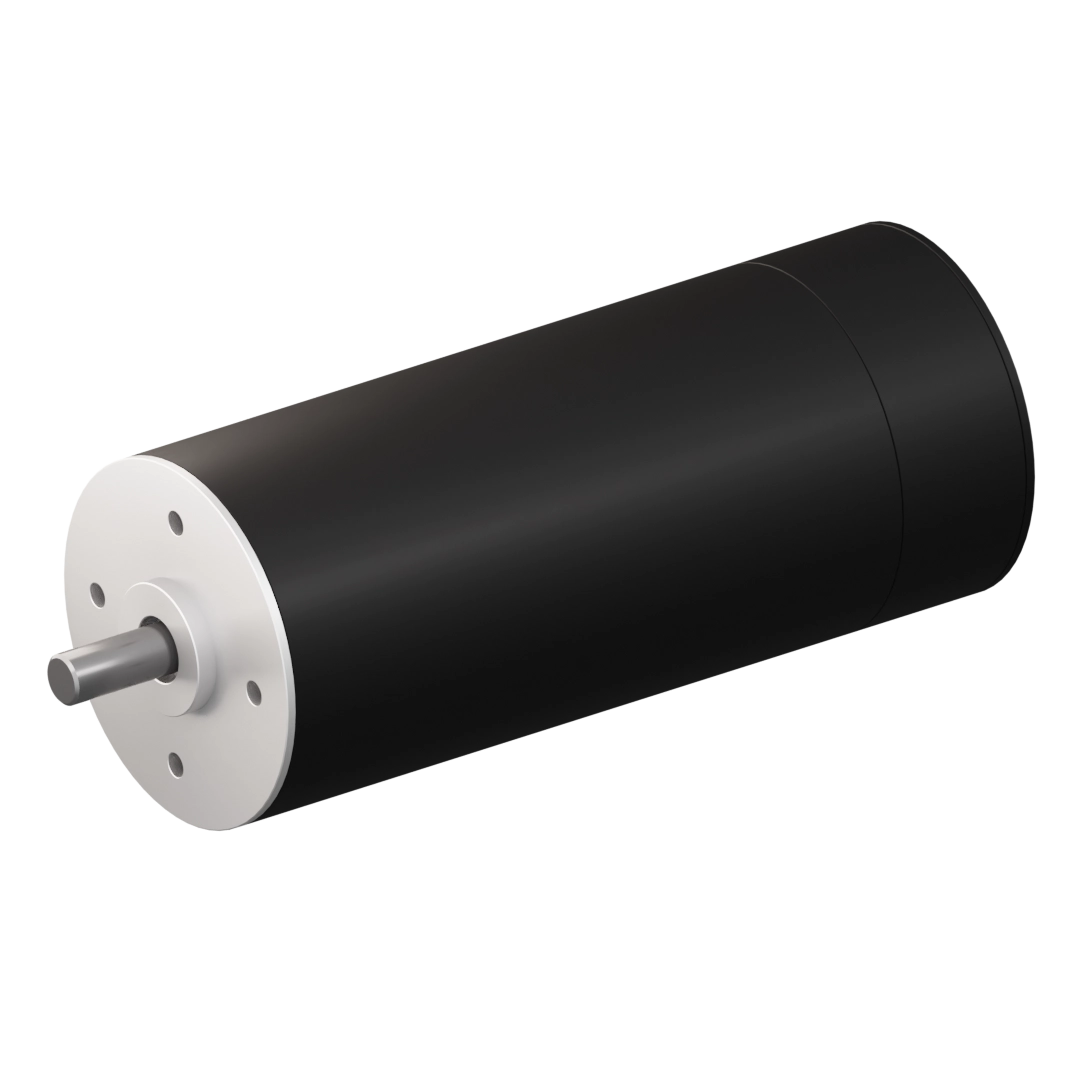

SVTN A 03-3683-12-S-0Coreless BLDC motors

SVTN A 03-3683-12-S-0 micromotor for coreless motor brushless

2 Pole Brushless DC Motors with Integrated Electronics

Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective

Our product range

Support & Services

Our Solutions

Brands

Our product range

Support & Services

Our Solutions

Brands

Our Solutions

Assemblies

Support & Services

Components

Micromotors

Series

SVTN A Coreless BLDC motors

SVTN B Coreless DC motors

SVTM F Flat Brushless DC Motors

2 Pole Brushless DC Motors with Integrated Electronics

366.0 g

36 mm

2 294 rpm

100.00 mNm

2 Pole Brushless DC Motors with Integrated Electronics

366.0 g

36 mm

2 294 rpm

100.00 mNm

2 Pole Brushless DC Motors with Integrated Electronics

366.0 g

36 mm

2 294 rpm

100.00 mNm

2 Pole Brushless DC Motors with Integrated Electronics

366.0 g

36 mm

2 304 rpm

100.00 mNm

2 Pole Brushless DC Motors with Integrated Electronics

366.0 g

36 mm

2 304 rpm

100.00 mNm

2 Pole Brushless DC Motors with Integrated Electronics

366.0 g

36 mm

2 304 rpm

100.00 mNm

2 Pole Brushed DC Motors

6.9 g

12 mm

11 200 rpm

0.50 mNm

2 Pole Brushed DC Motors

6.9 g

12 mm

11 200 rpm

0.50 mNm

2 Pole Brushed DC Motors

6.9 g

12 mm

11 200 rpm

0.50 mNm

2 Pole Brushed DC Motors

6.9 g

12 mm

11 200 rpm

0.50 mNm

2 Pole Brushed DC Motors

6.9 g

12 mm

27 200 rpm

1.20 mNm

2 Pole Brushed DC Motors

6.9 g

12 mm

27 200 rpm

1.20 mNm

2 Pole Brushed DC Motors

6.9 g

12 mm

SVTN A
Coreless BLDC motors

SVTN B
Coreless DC motors

SVTM F
Flat Brushless DC Motors
