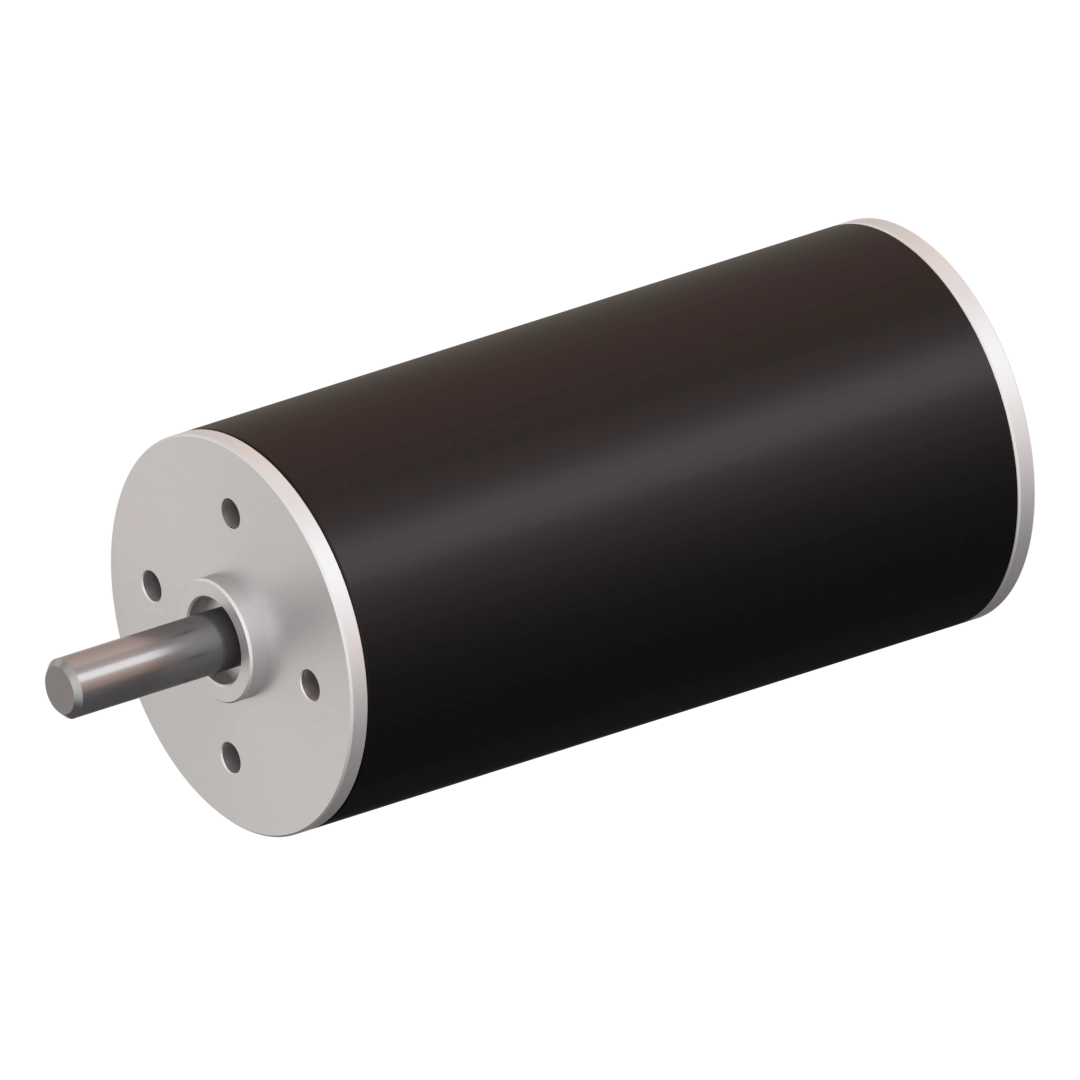

Micromotors| Slotless BLDC motor |SVTN A 02-2040-30-S-H

High-Speed Brushless DC Motors

Slotless BLDC motor

High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
View catalog
Typically employed in the medical field for surgical tools, these motors merge the SVTN A Series characteristics to an optimized project for high-speed functions. Thanks to a precise balancing of the rotor and the use of special bearings, maximum stability, and low noise are guaranteed.

Advantages

  • Winding technology without metal bodies
  • Good heat dissipation and high overload capacity
  • Long life expectancy

Benefits

  • Light and compact, easy integration
  • High reliability
  • Good return on investment

At your service

Need help in selecting the right product ?

Need more information ?
Contact us

SVTN A 02-2040-30-S-H
Nominal voltage30 V
No load speed40 700 rpm
No load current60 mA
Nominal speed36 777 rpm
Nominal torque6.30 mNm
Nominal current0.96 A
Stall torque65.00 mNm
Stall current9.40 A
Max. efficiency84.70 %
Terminal resistance*3.19 Ω
Terminal inductance*0.47 mH
Torque constant6.99 mNm/A
Speed constant1 365 mNm/V
Speed/torque gradient622.8 rpm | mNm
Mechanical time constant4.5 ms
Rotor inertia0.69 gcm²

Notice :The provided technical data are the higher limits recommended in static condition. To obtain the correct dimensioning of the product, it is necessary to hold account of all the applicable dynamic forces, including the inertia of the manipulator, the configuration of the tools and the external forces applied.
