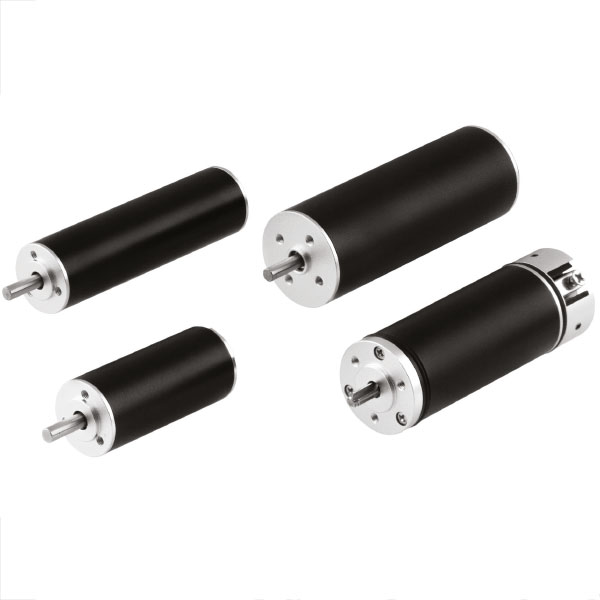

SVTN A 02
Typically employed in the medical field for surgical tools, these motors merge the SVTN A Series characteristics to an optimized project for high-speed functions.
Thanks to a precise balancing of the rotor and the use of special bearings, maximum stability, and low noise are guaranteed.
SVTN A 02-1636-24-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
37 067 rpm
5.00 mNm

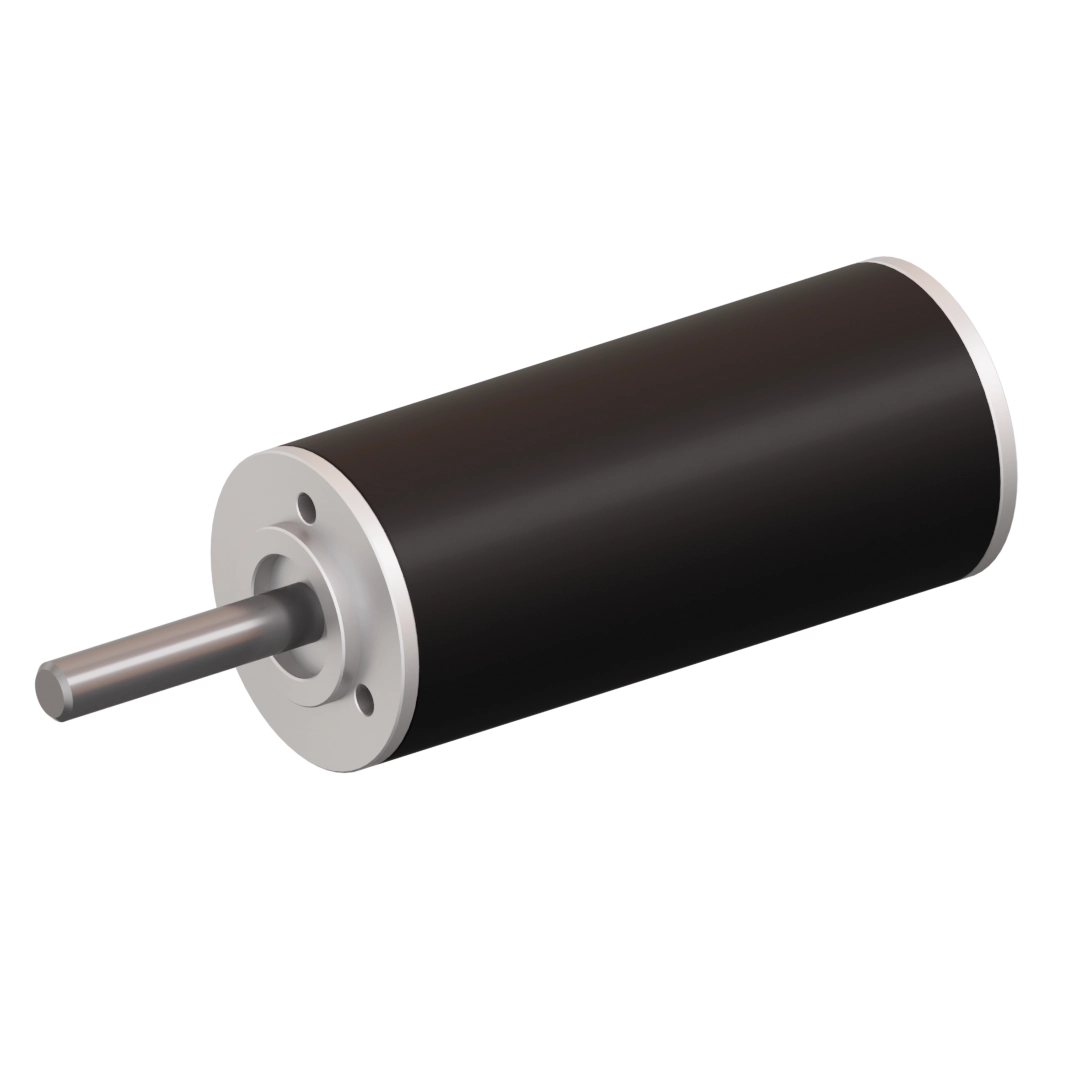

SVTN A 02-1636-24-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
37 067 rpm
5.00 mNm
SVTN A 02-1636-24-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
37 067 rpm
5.00 mNm
SVTN A 02-1636-30-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
36 958 rpm
5.00 mNm
SVTN A 02-1636-30-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
36 958 rpm
5.00 mNm
SVTN A 02-1636-30-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
36 958 rpm
5.00 mNm
SVTN A 02-1636-36-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
37 406 rpm
5.00 mNm
SVTN A 02-1636-36-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
37 406 rpm
5.00 mNm
SVTN A 02-1636-36-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
32.0 g
16 mm
37 406 rpm
5.00 mNm
SVTN A 02-1644-24-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
28 134 rpm
7.50 mNm
SVTN A 02-1644-24-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
28 134 rpm
7.50 mNm
SVTN A 02-1644-24-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
28 134 rpm
7.50 mNm
SVTN A 02-1644-30-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
28 403 rpm
7.50 mNm
SVTN A 02-1644-30-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
28 403 rpm
7.50 mNm
SVTN A 02-1644-30-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
28 403 rpm
7.50 mNm

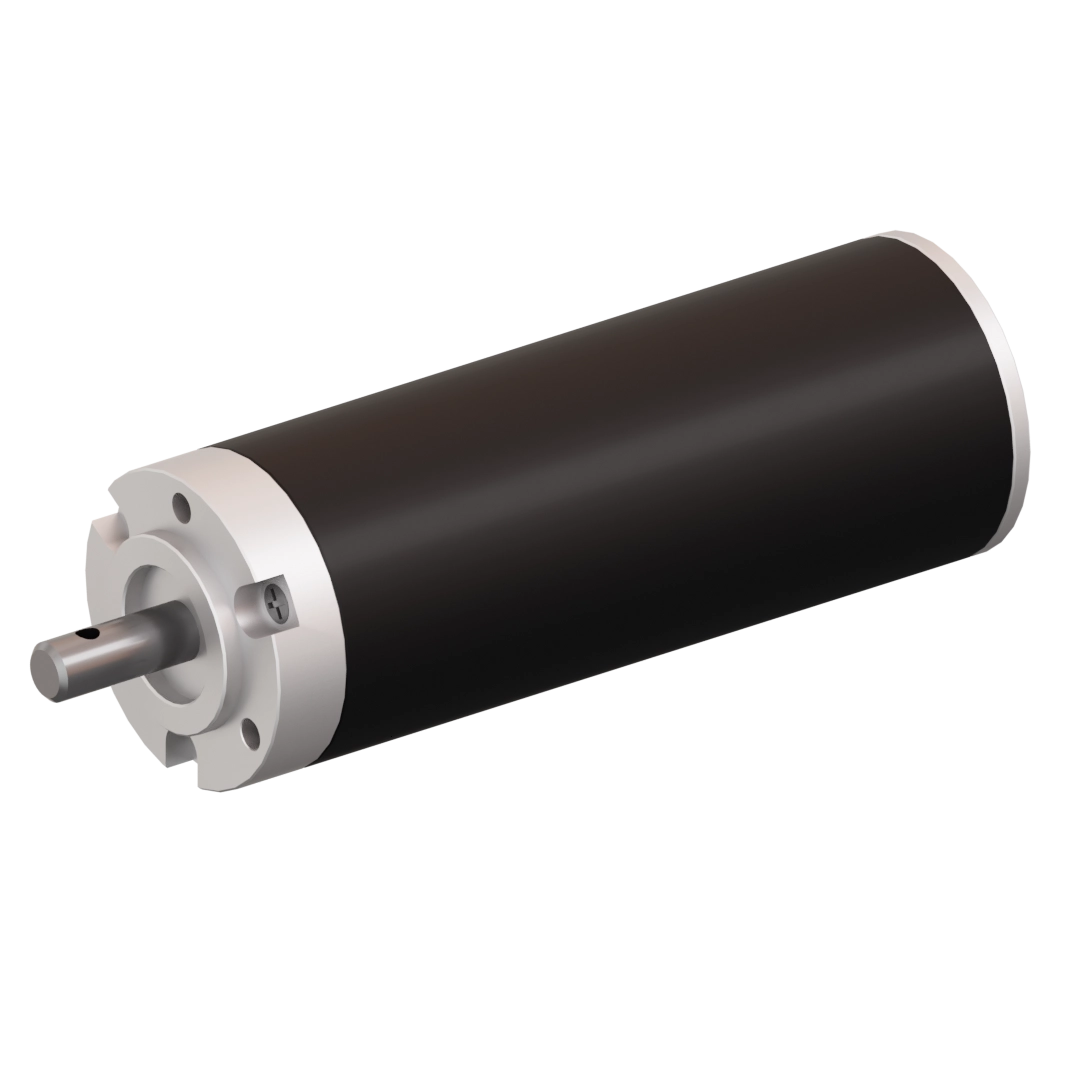

SVTN A 02-1644-36-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
27 632 rpm
7.50 mNm
SVTN A 02-1644-36-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
27 632 rpm
7.50 mNm
SVTN A 02-1644-36-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
43.0 g
16 mm
27 632 rpm
7.50 mNm
SVTN A 02-1656-24-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
39 232 rpm
6.00 mNm
SVTN A 02-1656-24-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
39 232 rpm
6.00 mNm
SVTN A 02-1656-24-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
39 232 rpm
6.00 mNm
SVTN A 02-1656-30-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
38 438 rpm
6.00 mNm
SVTN A 02-1656-30-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
38 438 rpm
6.00 mNm
SVTN A 02-1656-30-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
38 438 rpm
6.00 mNm
SVTN A 02-1656-36-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
38 898 rpm
6.00 mNm

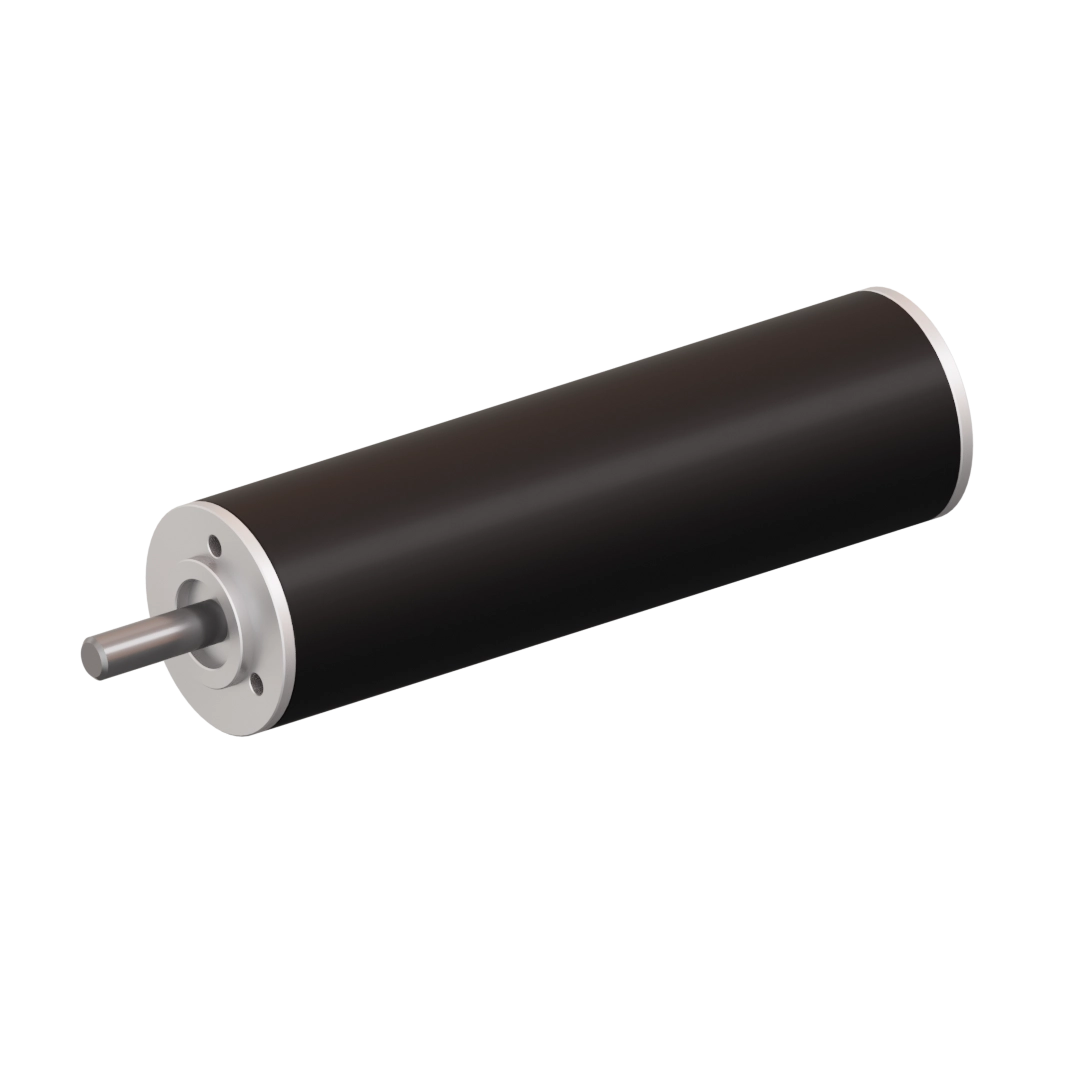

SVTN A 02-1656-36-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
38 898 rpm
6.00 mNm
SVTN A 02-1656-36-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
50.0 g
16 mm
38 898 rpm
6.00 mNm
SVTN A 02-2040-24-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
37 500 rpm
6.30 mNm
SVTN A 02-2040-24-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
37 500 rpm
6.30 mNm
SVTN A 02-2040-24-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
37 500 rpm
6.30 mNm

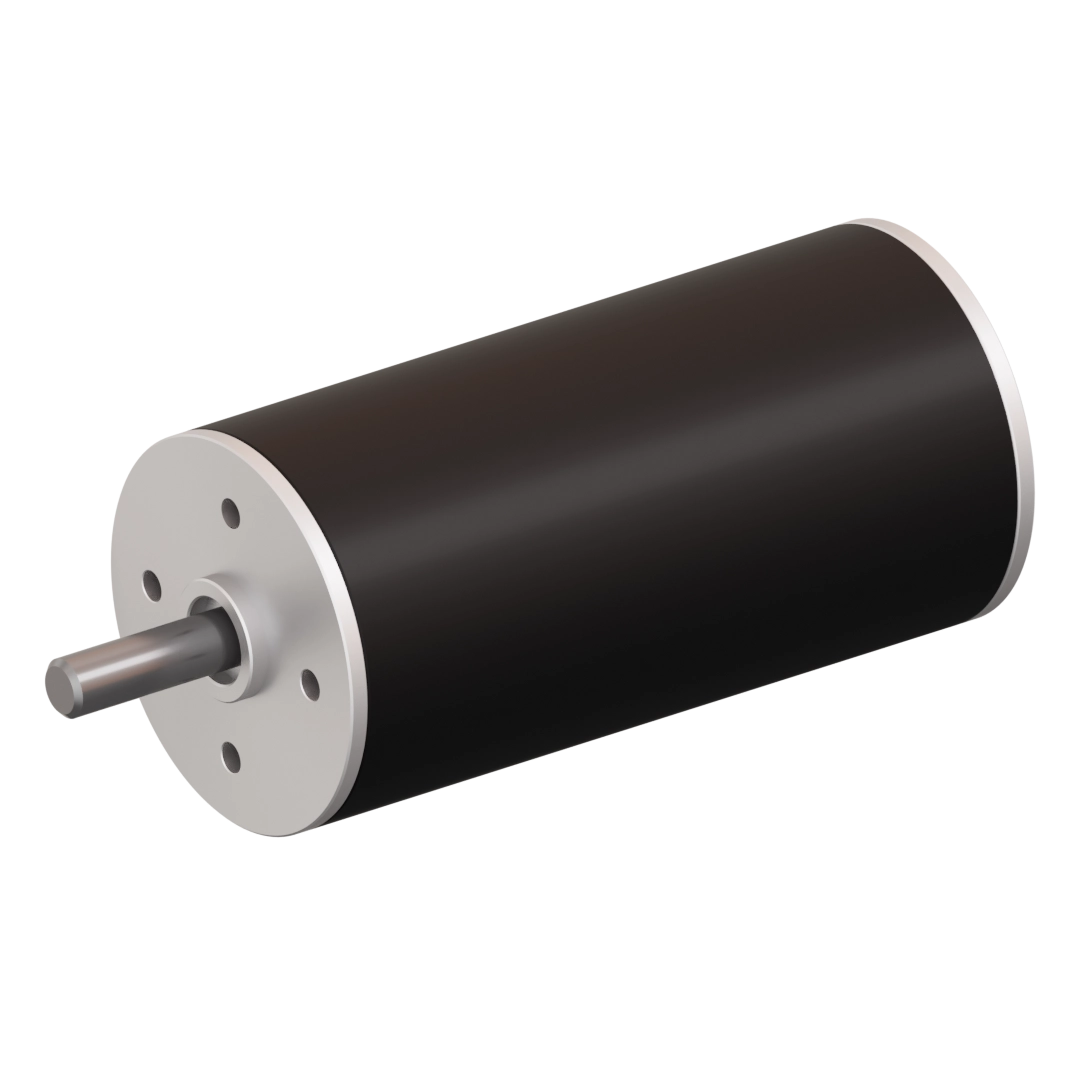

SVTN A 02-2040-30-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
36 777 rpm
6.30 mNm
SVTN A 02-2040-30-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
36 777 rpm
6.30 mNm
SVTN A 02-2040-30-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
36 777 rpm
6.30 mNm
SVTN A 02-2040-36-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
36 049 rpm
6.30 mNm
SVTN A 02-2040-36-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
36 049 rpm
6.30 mNm
SVTN A 02-2040-36-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
53.0 g
20 mm
36 049 rpm
6.30 mNm
SVTN A 02-2053-18-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
45 684 rpm
10.00 mNm
SVTN A 02-2053-18-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
45 684 rpm
10.00 mNm
SVTN A 02-2053-18-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
45 684 rpm
10.00 mNm
SVTN A 02-2053-24-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 379 rpm
10.00 mNm
SVTN A 02-2053-24-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 379 rpm
10.00 mNm
SVTN A 02-2053-24-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 379 rpm
10.00 mNm

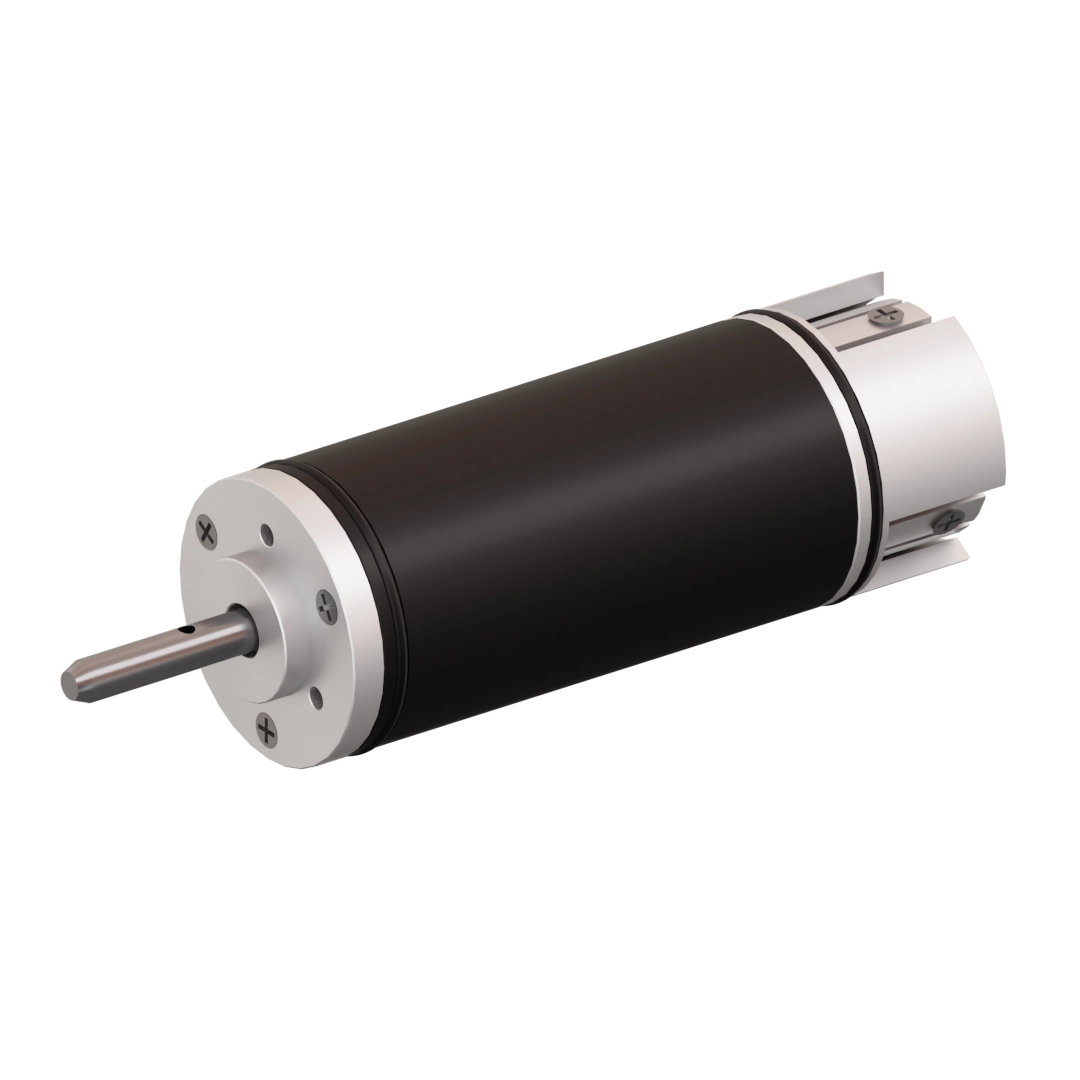

SVTN A 02-2053-36-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 936 rpm
10.00 mNm
SVTN A 02-2053-36-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 936 rpm
10.00 mNm
SVTN A 02-2053-36-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 936 rpm
10.00 mNm
SVTN A 02-2053-48-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 188 rpm
10.00 mNm
SVTN A 02-2053-48-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 188 rpm
10.00 mNm
SVTN A 02-2053-48-D-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
63.0 g
20 mm
46 188 rpm
10.00 mNm
SVTN A 02-2057-18-S-OSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
69.0 g
20 mm
46 263 rpm
15.00 mNm

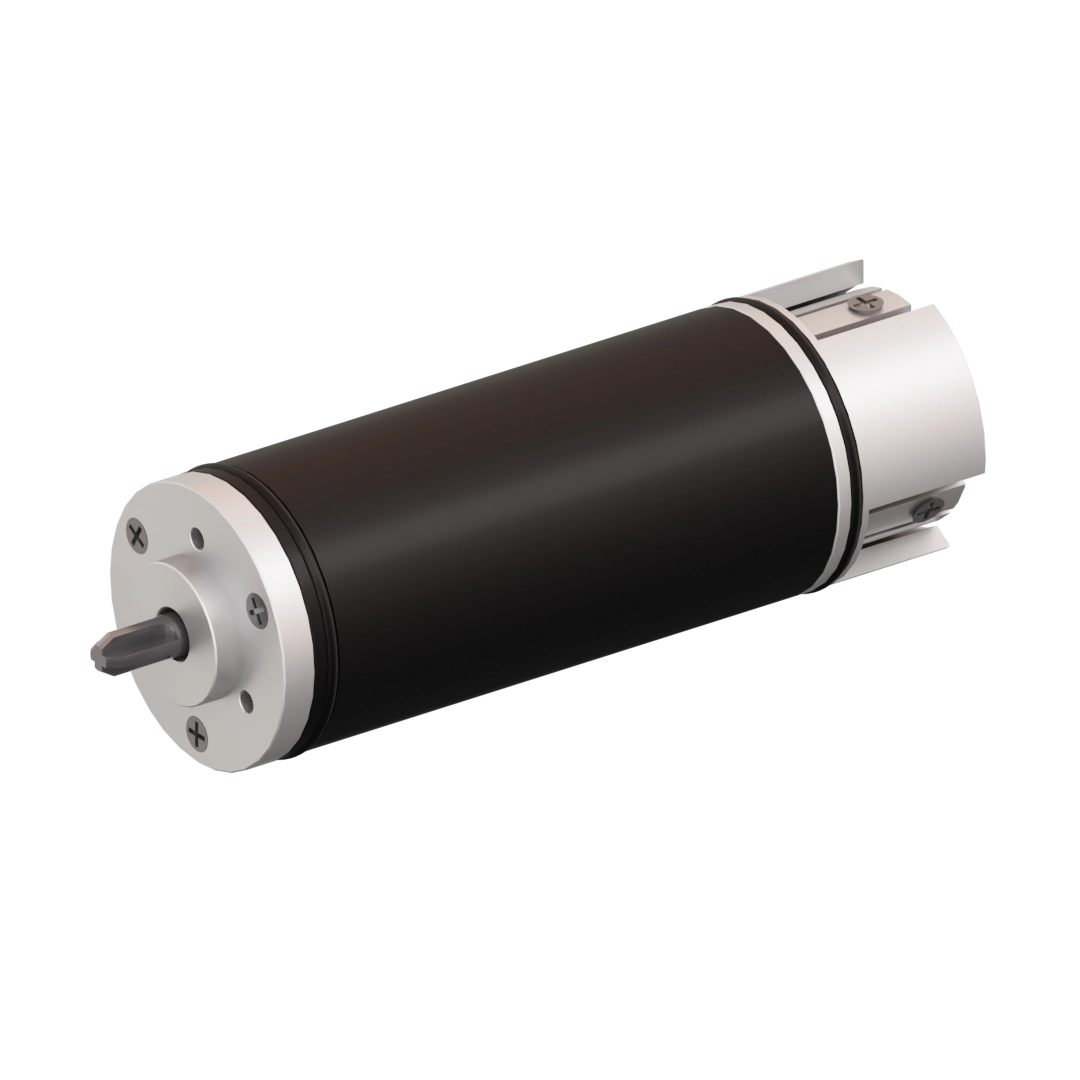

SVTN A 02-2057-18-S-HSlotless BLDC motor
High-Speed Brushless DC Motors
Slotless BLDC motor High Speed - Long Lifespan - Cost Effective Low Inertia - High Efficiency - Low Noise - High Reliability
