With screw connections and thru-bore SVTS B 03 series offers extended integration possibilities while keeping easy an easily replaceable unit with IP65 protection level. Those slip rings can fit all applications where power transfer is required with one monitoring signal.

SVTS B Screw connection
Affichage 1 - 4 sur 4

SVTS B 03-U-A-02/003 circuits

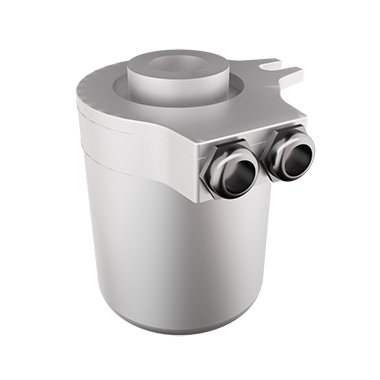

Servotecnica SVTS B 03-U-A-02/00 IP65 slip ring

A rugged rotary interface engineered for higher currents

The SVTS B 03-U-A-02/00 is an industrial slip ring with 2 circuits rated at 20 A, a 77 mm outer diameter and IP65 protection once installed. Its M5 screw terminals provide a robust, removable connection for transmitting electrical power through rotating axes in demanding industrial environments.

byLogo servotcnica
250-400 rpm
2 x 20A
IP65
77.0 mm
View Product

SVTS B 03-U-A-02/025 circuits

Servotecnica SVTS B 03-U-A-02/02 IP65 slip ring

A rugged rotary interface engineered for higher currents

The SVTS B 03-U-A-02/02 combines 2 power circuits rated at 20 A with 2 signal circuits rated at 2 A in a slip ring with a 77 mm outer diameter and IP65 protection once installed. Its M5 screw terminals combine power and electrical signals in a robust rotary interface with convenient wiring.

byLogo servotcnica
250-400 rpm
2 x 20A, 2 x 2A
IP65
77.0 mm
View Product

SVTS B 03-U-A-03/003 circuits

Servotecnica SVTS B 03-U-A-03/00 IP65 slip ring

A rugged rotary interface engineered for higher currents

The SVTS B 03-U-A-03/00 is an industrial slip ring with 3 power circuits rated at 20 A, a 77 mm outer diameter and IP65 protection once installed. Its M5 screw terminals provide a robust mechanical connection for powering continuously rotating equipment requiring multiple high-current circuits.

byLogo servotcnica
250-400 rpm
3 x 20A
IP65
77.0 mm
View Product

SVTS B 03-U-A-03/025 circuits

Servotecnica SVTS B 03-U-A-03/02 IP65 slip ring

A rugged rotary interface engineered for higher currents

The SVTS B 03-U-A-03/02 combines 3 power circuits rated at 20 A with 2 signal circuits rated at 2 A in a slip ring with a 77 mm outer diameter and IP65 protection once installed. This configuration combines power and signals across five electrical channels with M5 connections, simplifying the wiring of an industrial rotating axis.

byLogo servotcnica
250-400 rpm
3x 20A, 2 x 2A
IP65
77.0 mm
View Product
