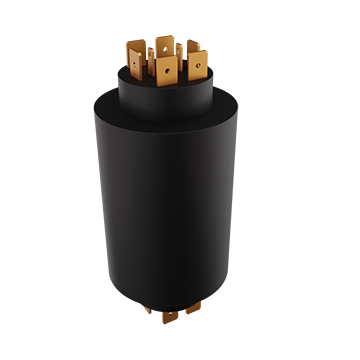

SVTS B
SVTS B series is the most compact solution with fibre brush technology. Thanks to pultiple contact points, the faston B Series Slip Rings ensure longer lifespan due to low contact wear rates, while guarateeing low contact resistance. Specially designed for intensive use at high speed and for transmitting power and sensitive signals such as thermocouples ones, these slip rings are particularly suitable for use on flowpack packaging machines. The use of faston type connectors avoids the use of welds that may affect the reading of thermocouple signals.
Moreover, the IP65 version makes it washable, guaranteeing protection against low pressure jets if watered from all directions.
|
|
Options
* Customizable
SVTS B 01-S-A-02/002 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-S-A-02/00 is a compact slip ring with 2 circuits rated at 14 A, a 32 mm outer diameter and IP51 protection. Its multipoint contacts provide reliable electrical transmission through a rotating axis while maintaining a compact footprint.
250-400 rpm
2 x 14A
IP51
32.0 mm
SVTS B 01-S-A-02/024 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-S-A-02/02 combines 2 circuits rated at 14 A and 2 circuits rated at 2 A in a slip ring with a 32 mm outer diameter and IP51 protection. This configuration combines power and low-current circuits in a single compact rotary interface with multipoint contacts.
250-400 rpm
2 x 2A, 2 x 14A
IP51
32.0 mm
SVTS B 01-S-A-03/003 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-S-A-03/00 is a compact slip ring with 3 circuits rated at 14 A, a 32 mm outer diameter and IP51 protection. It provides continuous electrical power transfer between stationary and rotating parts using multipoint contact technology suited to industrial applications.
250-400 rpm
3 x 14A
IP51
32.0 mm

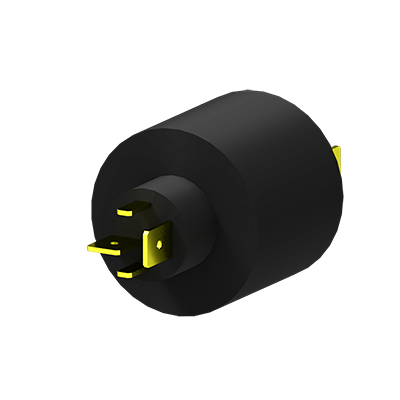

SVTS B 01-U-A-02/002 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-02/00 is a compact slip ring with 2 circuits rated at 20 A, a 32 mm outer diameter and enhanced IP65 protection. It transmits high currents through a rotating axis while providing greater protection against dust and water jets.
250-400 rpm
2 x 20A
IP65
32.0 mm
SVTS B 01-U-A-02/024 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-02/02 combines 2 circuits rated at 20 A and 2 circuits rated at 5 A in a slip ring with a 32 mm outer diameter and IP65 protection. This mixed architecture centralises different current levels in a compact, protected rotary interface.
250-400 rpm
2 x 5A, 2 x 20A
IP65
32.0 mm
SVTS B 01-U-A-02/035 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-02/03 combines 3 circuits rated at 20 A with 2 circuits rated at 5 A in a compact 32 mm slip ring with IP65 protection. This configuration provides five electrical channels with two current levels to combine power and auxiliary connections through the same rotating axis.
250-400 rpm
2 x 5A, 3 x 20A
IP65
32.0 mm
SVTS B 01-U-A-03/003 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-03/00 is a compact slip ring with 3 circuits rated at 20 A, a 32 mm outer diameter and IP65 protection. Its current capacity and multipoint contacts support demanding rotating equipment in more exposed industrial environments.
250-400 rpm
3 x 20A
IP65
32.0 mm

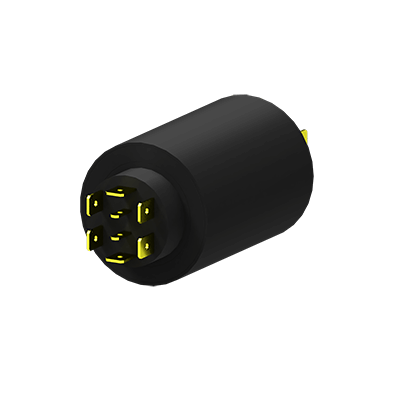

SVTS B 02-S-A-06/006 circuits
Accessible rotary connections to simplify machine wiring
The SVTS B 02-S-A-06/00 is an industrial slip ring with 6 circuits rated at 20 A, a 45 mm outer diameter and IP51 protection. Its multipoint contacts and Faston terminals provide reliable power transmission through a rotating axis, with removable connections suited to intensive industrial applications.
250-400 rpm
6 x 20A
IP51
45.0 mm
SVTS B 02-S-A-06/028 circuits
Accessible rotary connections to simplify machine wiring
The SVTS B 02-S-A-06/02 combines 6 circuits rated at 20 A with 2 circuits rated at 5 A in a slip ring with a 45 mm outer diameter and IP51 protection. This configuration transmits power and signals, including sensitive thermocouple signals, through a single rotary interface with removable Faston terminals.
250-400 rpm
2 x 5A, 6 x 20A
IP51
45.0 mm
SVTS B 03-U-A-02/003 circuits
A rugged rotary interface engineered for higher currents
The SVTS B 03-U-A-02/00 is an industrial slip ring with 2 circuits rated at 20 A, a 77 mm outer diameter and IP65 protection once installed. Its M5 screw terminals provide a robust, removable connection for transmitting electrical power through rotating axes in demanding industrial environments.
250-400 rpm
2 x 20A
IP65
77.0 mm

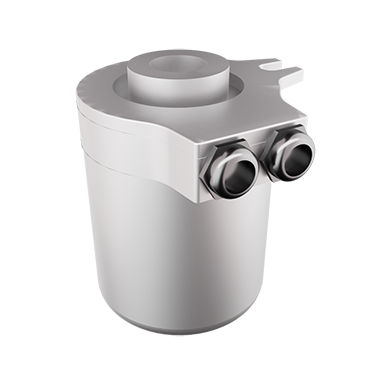

SVTS B 03-U-A-02/025 circuits
A rugged rotary interface engineered for higher currents
The SVTS B 03-U-A-02/02 combines 2 power circuits rated at 20 A with 2 signal circuits rated at 2 A in a slip ring with a 77 mm outer diameter and IP65 protection once installed. Its M5 screw terminals combine power and electrical signals in a robust rotary interface with convenient wiring.
250-400 rpm
2 x 20A, 2 x 2A
IP65
77.0 mm
SVTS B 03-U-A-03/003 circuits
A rugged rotary interface engineered for higher currents
The SVTS B 03-U-A-03/00 is an industrial slip ring with 3 power circuits rated at 20 A, a 77 mm outer diameter and IP65 protection once installed. Its M5 screw terminals provide a robust mechanical connection for powering continuously rotating equipment requiring multiple high-current circuits.
250-400 rpm
3 x 20A
IP65
77.0 mm
SVTS B 03-U-A-03/025 circuits
A rugged rotary interface engineered for higher currents
The SVTS B 03-U-A-03/02 combines 3 power circuits rated at 20 A with 2 signal circuits rated at 2 A in a slip ring with a 77 mm outer diameter and IP65 protection once installed. This configuration combines power and signals across five electrical channels with M5 connections, simplifying the wiring of an industrial rotating axis.
250-400 rpm
3x 20A, 2 x 2A
IP65
77.0 mm
