The SVTS F series is characterized by a special design that makes these slip rings very flat (45 mm high) while ensuring the transfer of up to 17 signal circuits and up to 3 power circuits (15 A).

These slip rings are designed for applications where height is a crictical factor, they provide similar performances that the C Series from which they derive and are maintenance-free.

  • Flat design
  • Power circuits
  • Many customizations available
  • Low friction torque
  • High lifetime and reliability
  • Compliant to CE and ROHS

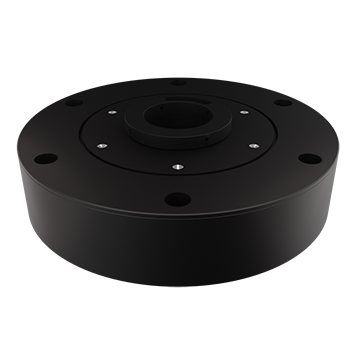

SVTS F thumb
Affichage 1 - 1 sur 1

SVTS F 01-S-A-03/1720 circuits

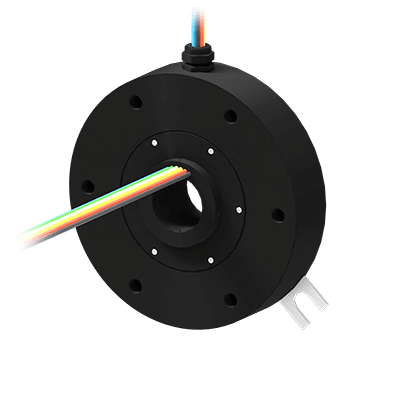

Servotecnica SVTS F 01-S-A-03/17 through-bore slip ring

Rotary transmission when available height becomes critical

The SVTS F 01-S-A-03/17 is an IP51 superflat slip ring with an overall height of only 40 mm, a 40 mm through-bore and a 180 mm outer diameter. It combines 20 circuits in total, including 3 power circuits rated at 10 A and 17 signal circuits rated at…

byLogo servotcnica
0-250 rpm
17 x 5A, 3 x 10A
IP51
180.0 mm
View Product
