Rotary Union| 1 passage |SPS(M) 5610

Single-pass solution for transfer of air or vacuum through a rotary installation*

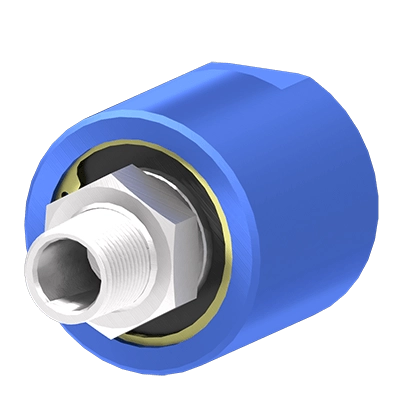

The single passage SPSM Series rotary unions are small, lightweight but rugged and corrosion-resistant thanks to their aluminum construction with a stainless steel shaft.
* The use of liquid media is not recommended for this product. Please select from one of our other product lines or consult PES if your application requires use of liquid media.

The SPS(M) Series rotary unions give a single-pass solution for hydraulic, pneumatic or even vacuum applications that can be integrated directly with Thru-bore Slip Rings to combine a single fluid passage with power, signal and/or data transfer.

Advantages

  • Multipurpose solution for air, gas, oil, water or vacuum
  • Easy integration
  • High performances (pressure, rotating speed)

Benefits

  • Avoid the need of complex piping arrangements
  • Increased machinery performances
  • Paiping maintenance mitigated

SPS(M) 5610
TypeSingle Passage
Passages1 passage
Connector1" BSPT
Overall Diameter
69.8 mm
Overall length
79.5 mm
Min Torque
1.81 Nm
Passage Size
25.4 mm
Maximum Pressure14 MPa (40 bar)
Maximum Vaccum130 HG
Max Speed1500 rpm
Temperature Range1-18°C à 105°C

1Values are dependent on a combination of all application parameters. Please consult PES.
2Applications with temperatures above 105°C require alternative seal materials. Please consult PES.

General information

SPS(M) 5610
Connection Sizes1/8", 1/4", 3/8", 1/2", 3/4", 1" BSPT
Plating and CoatingShaft : 304 Stainless Steel Housing : Blue Anodized Aliminium
MountingTapped holes are provided on the housing with male BSPT thread connection for shaft mounting

Notice :The provided technical data are the higher limits recommended in static condition. To obtain the correct dimensioning of the product, it is necessary to hold account of all the applicable dynamic forces, including the inertia of the manipulator, the configuration of the tools and the external forces applied.
