Electricals Interfaces Modules

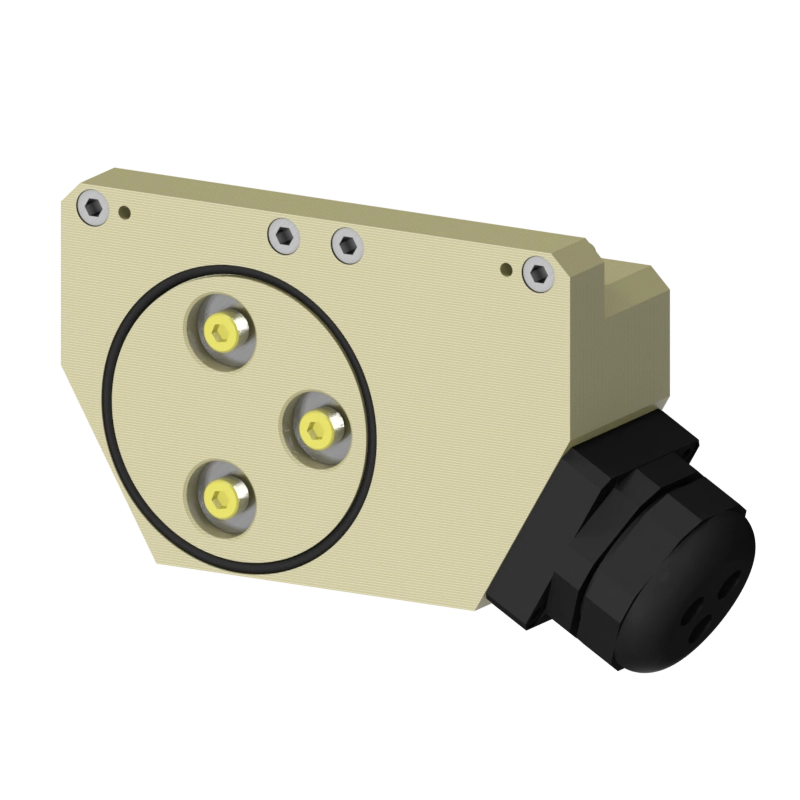

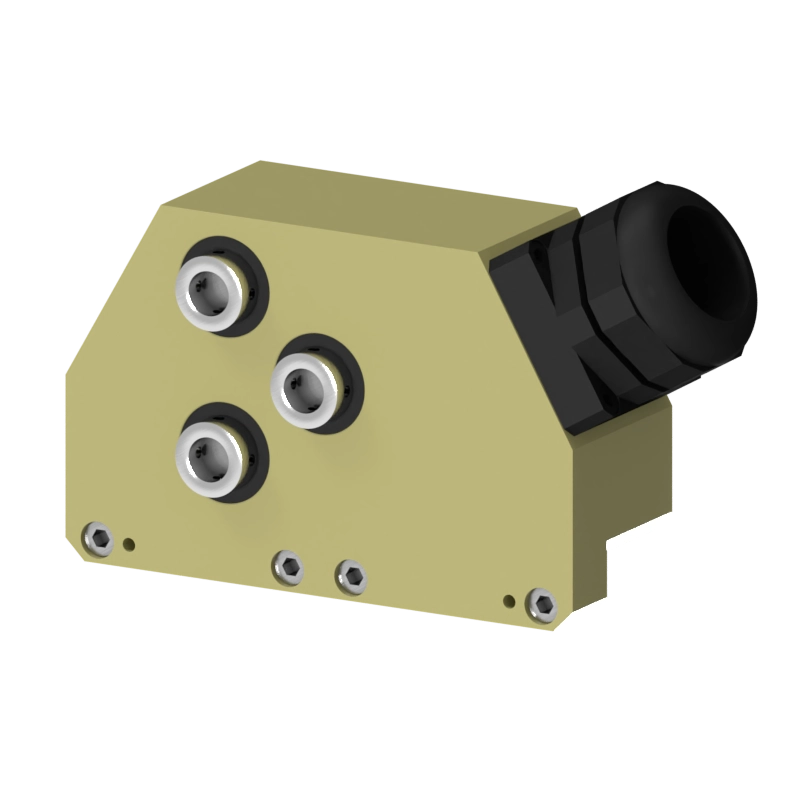

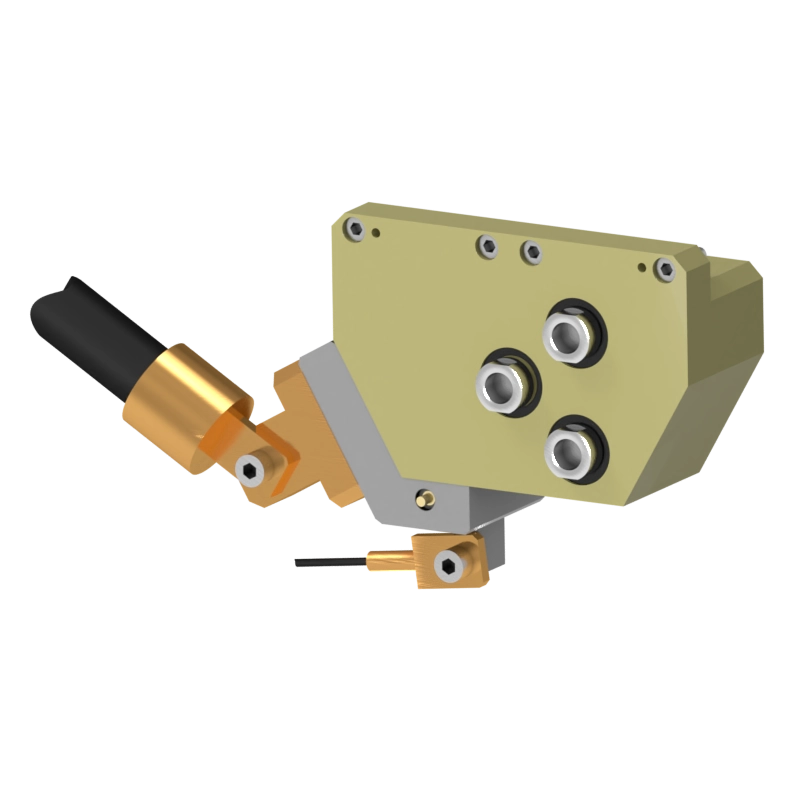

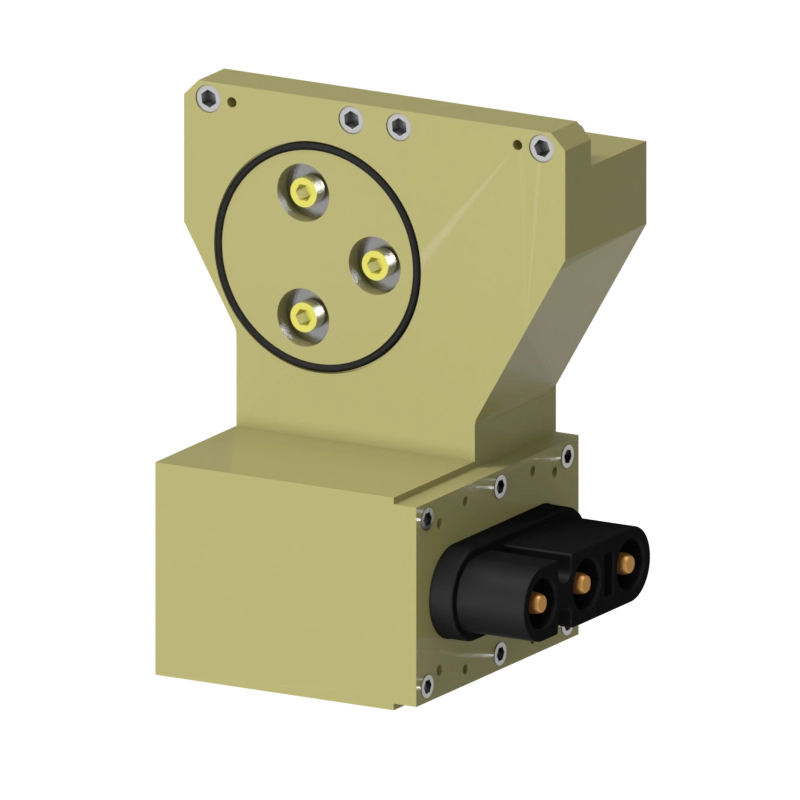

Electrical module with 3 contacts HIKVA - PG36

Power Module 200A robot base side RobiFix

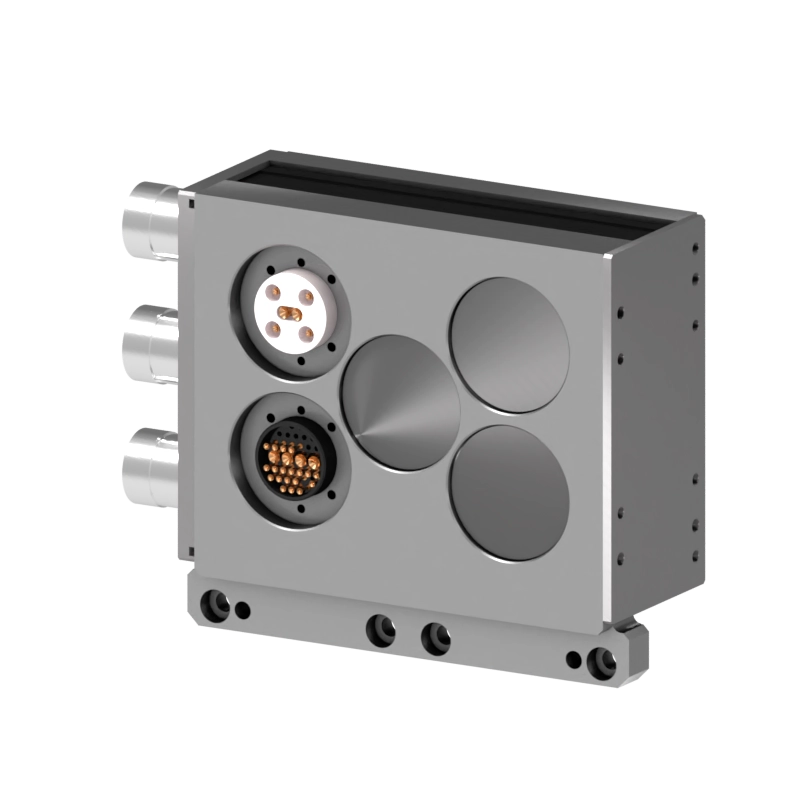

Robot-side module dedicated to SPR applications (5 contacts of 25A, 2x7A, 32 x 5 contacts of 5A and 4x7A with 3 Intercontec IC17-IC17 and IC6 bases)

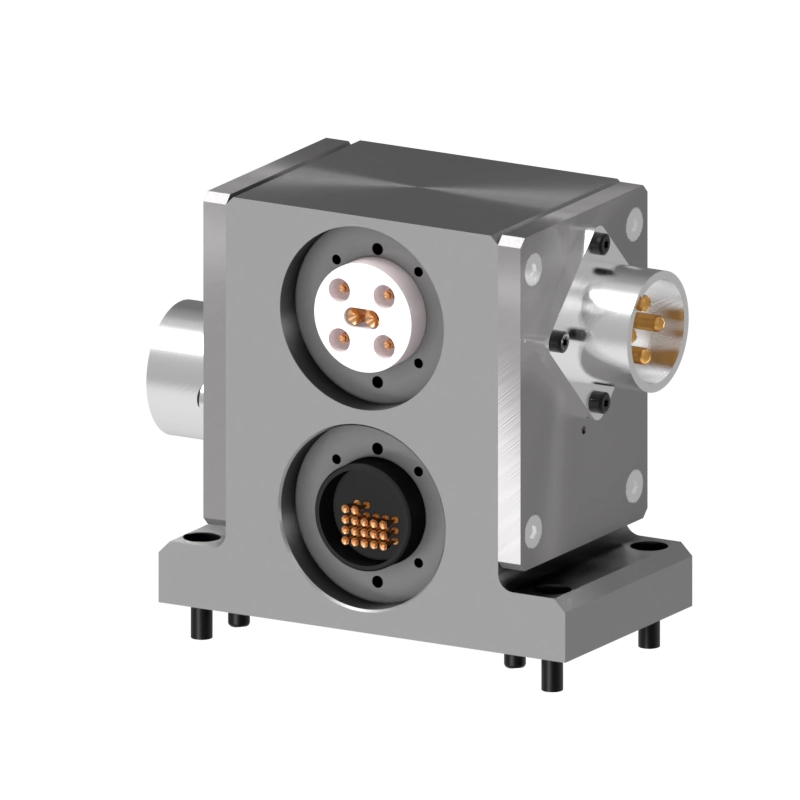

Robot servo electrical module for welding gun with brake and resolver, Amphenol straight connector 17 pins (MS-3102A20-29P) and 6 pins (MS-3102A20-17P)

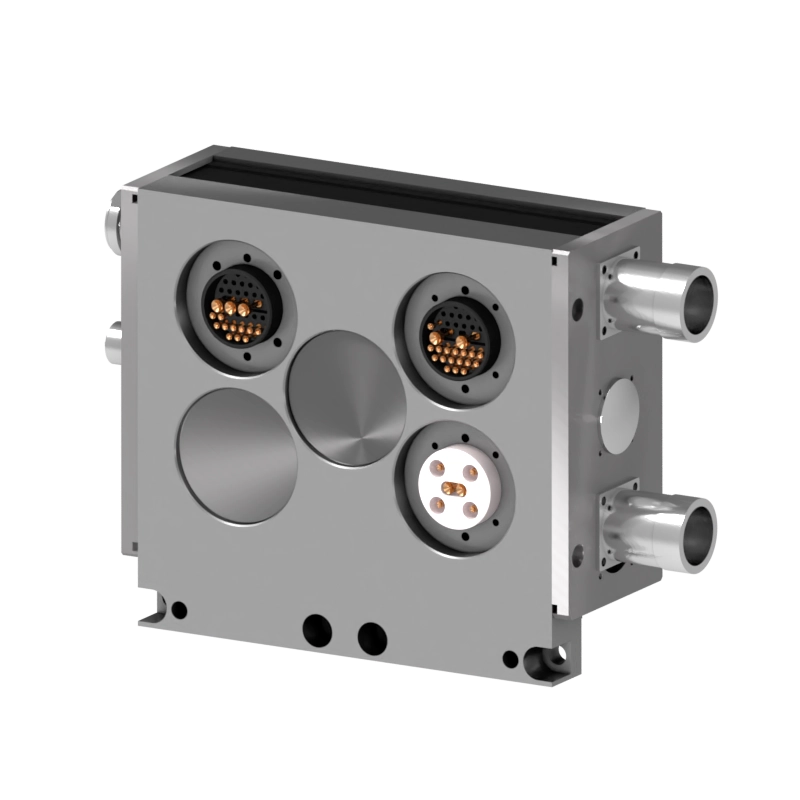

Robot side module for BOLLHOFF gun application with: One M8-COD D female connector (Profinet), one 7/8" 5-point male connector (24V), one M23-8-point male connector (Motor) and one M23 male connector…

Servo module, including 4 pins and 17 pins Amphenol connectors and Amphenol 3 pins connector as well as a M12 5 pins connector (KSR), a M12 5 pins socket connector (Current measurement (MF).Gold…

Robot electrIcal module for Couple/Uncouple sensor on male M12 4 pins connector

Robot electrical module for S3/S5 - 3 power contacts for PG36 and 3 contacts high power module for 3x35² cable

Robot electrical module for S3/S5 - 3 power contacts for grounding (95 mm²) and grounding measurement (1.5 mm²)

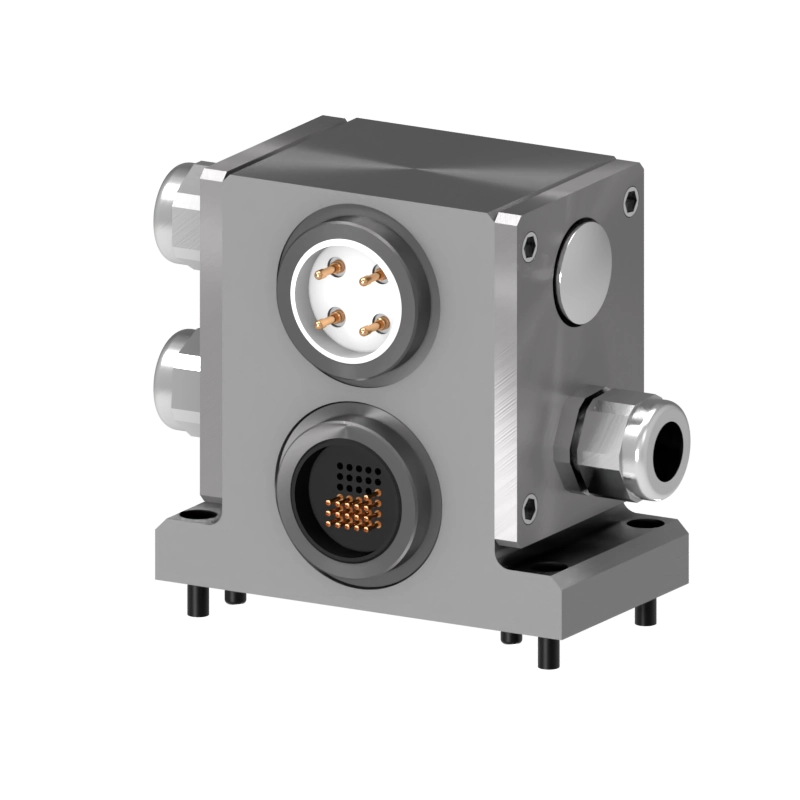

Servogun electrical module with 3 cables of 1,3 meters equiped of female Amphenol connectors 4 pins and 17 pins "1/4 turn" and a connector M12 5 pins

Sigma Electrical module for ARPLAS gun with 30 contacts at 5A, and intercontec connector M23/19 pins (cable 1.3m)

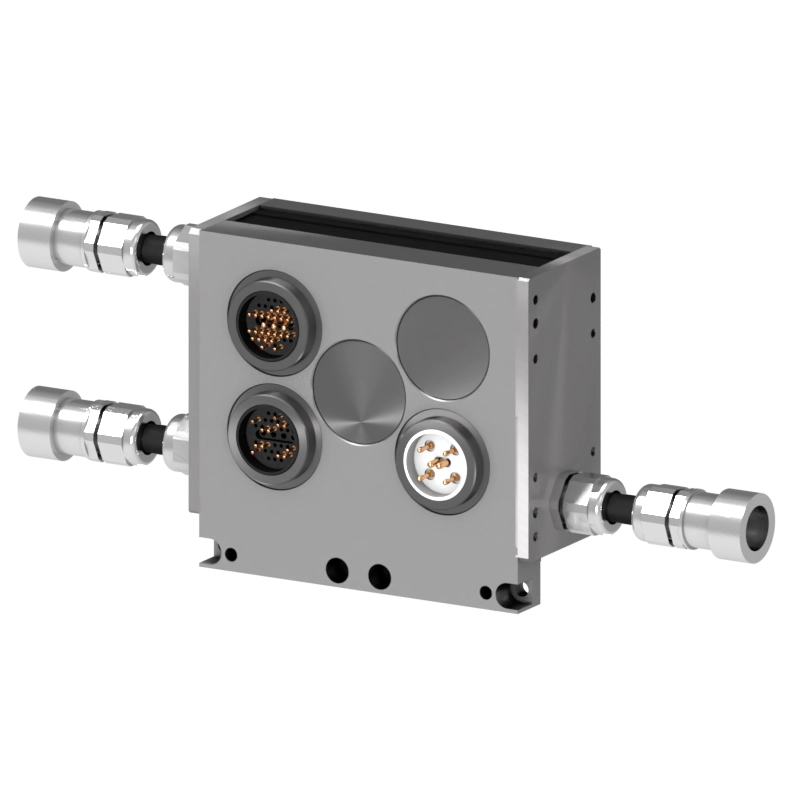

Clinching module, including 1.3m cables with intercontec 6 pins (motor) mating connector, intercontec 12 pins (resolver) mating connector, intercontec 26 pins (signals) mating connector.

Tool electrical module for S3/S5 - 3 power contacts for grounding (95 mm²) and grounding measurement (1.5 mm²)

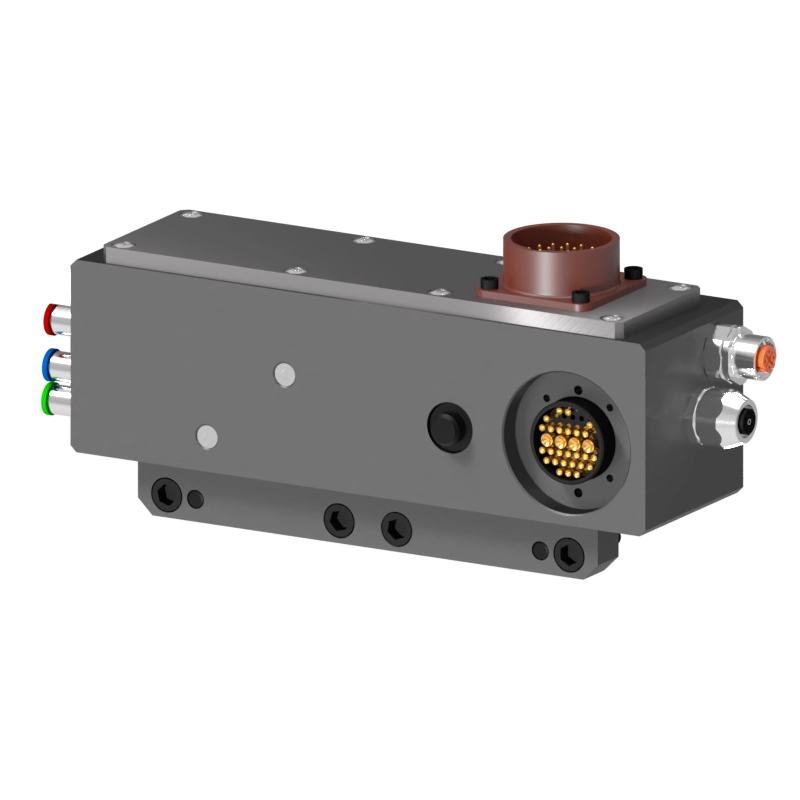

Sigma Electrical module with 30 contacts at 5A, 4 contacts at 25A , 1x6 pin interconnectron plug + 1x17 pin Amphénol plug and 1 M23.19 plug.

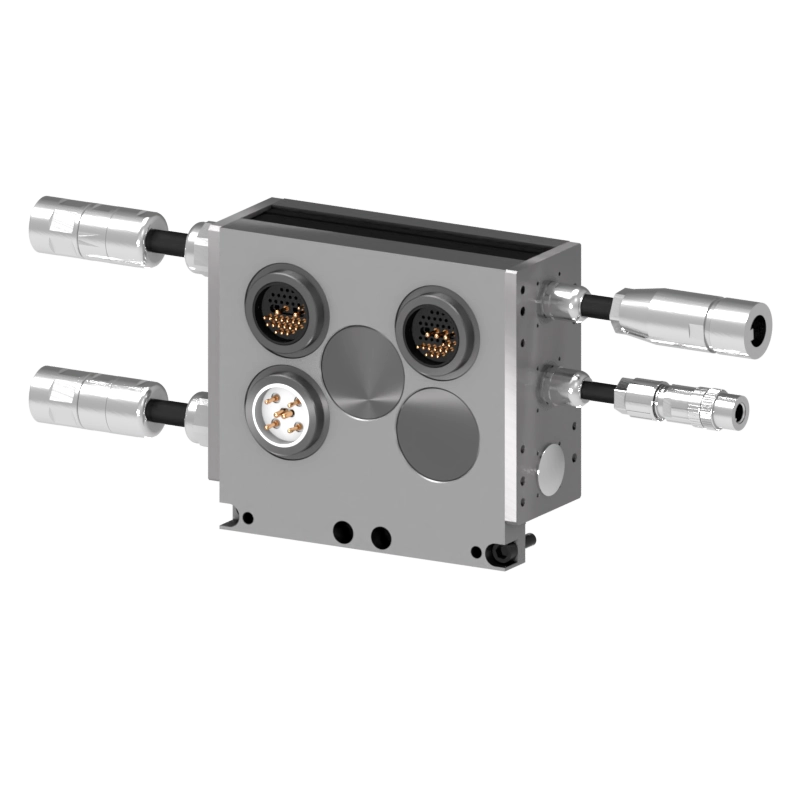

Tool side module for BOLLHOFF gun application with: One M8-COD A male connector , one 7/8" 5-point female connector (24V), one M23-8-point female connector (Motor) and one M23 female connector -12…

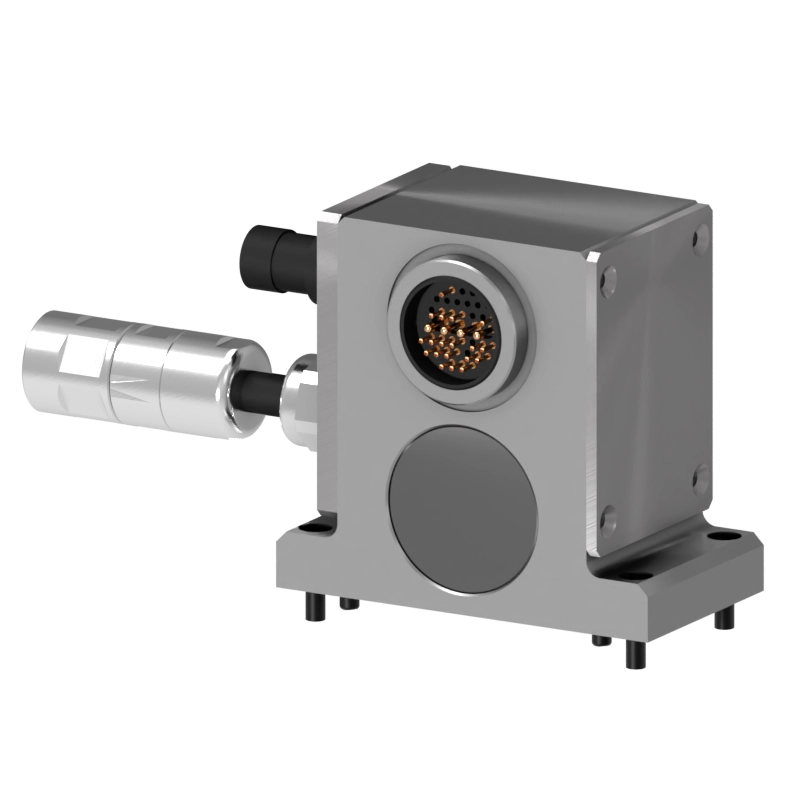

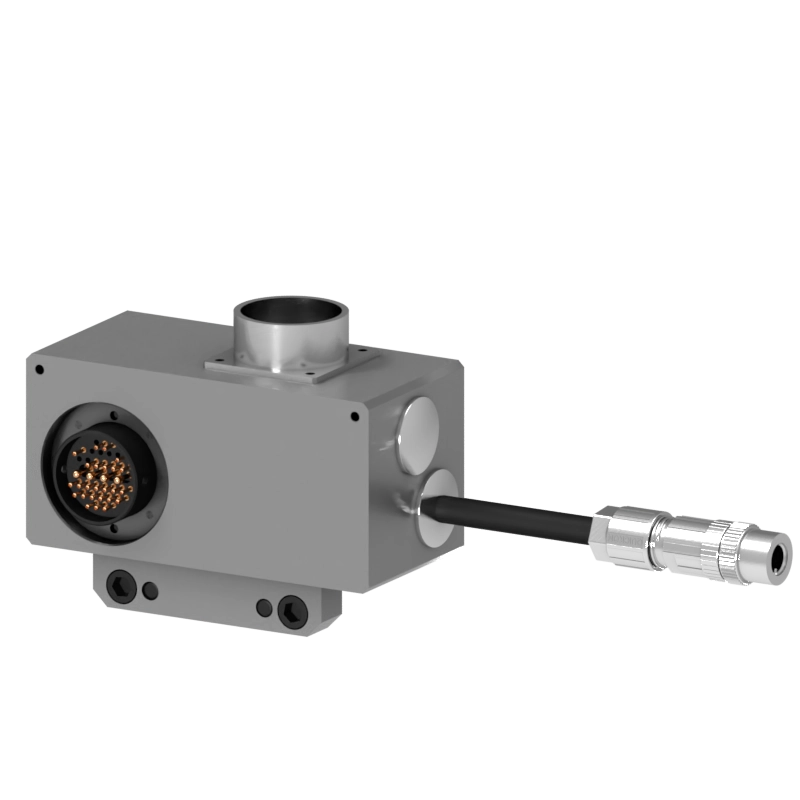

Electrical module tooling s side with 1 M23 / 19-pin female plug at the end of a 60 cm cable and 1 coding pad (3 bits) on an M12 connector
