Components

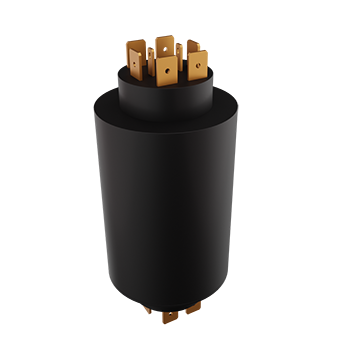

SVTS B Faston connections
<p>
Our SVTS B series offering Faston connections is the leading solution for flowpack machines. Those slip rings offer a robust and reliable solution to transfer power to a rotating heating blade that will cut and seal instantaneously the film that packs each piece of product individually. They also allow retrieving thermocouples signals with accuracy thanks to solder-free connections.
</p>
<p>
Obviously, SVTS B slip rings can fit multiple applications where high power is required. They can be found with IP65 protection for washable or outside environments.
</p>
SVTS B 01-S-A-02/002 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-S-A-02/00 is a compact slip ring with 2 circuits rated at 14 A, a 32 mm outer diameter and IP51 protection. Its multipoint contacts provide reliable electrical transmission through a…
250-400 rpm
2 x 14A
IP51
32.0 mm
SVTS B 01-S-A-02/024 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-S-A-02/02 combines 2 circuits rated at 14 A and 2 circuits rated at 2 A in a slip ring with a 32 mm outer diameter and IP51 protection. This configuration combines power and low-current…
250-400 rpm
2 x 2A, 2 x 14A
IP51
32.0 mm
SVTS B 01-S-A-03/003 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-S-A-03/00 is a compact slip ring with 3 circuits rated at 14 A, a 32 mm outer diameter and IP51 protection. It provides continuous electrical power transfer between stationary and…
250-400 rpm
3 x 14A
IP51
32.0 mm
SVTS B 01-U-A-02/002 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-02/00 is a compact slip ring with 2 circuits rated at 20 A, a 32 mm outer diameter and enhanced IP65 protection. It transmits high currents through a rotating axis while providing…
250-400 rpm
2 x 20A
IP65
32.0 mm
SVTS B 01-U-A-02/024 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-02/02 combines 2 circuits rated at 20 A and 2 circuits rated at 5 A in a slip ring with a 32 mm outer diameter and IP65 protection. This mixed architecture centralises different…
250-400 rpm
2 x 5A, 2 x 20A
IP65
32.0 mm
SVTS B 01-U-A-02/035 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-02/03 combines 3 circuits rated at 20 A with 2 circuits rated at 5 A in a compact 32 mm slip ring with IP65 protection. This configuration provides five electrical channels with two…
250-400 rpm
2 x 5A, 3 x 20A
IP65
32.0 mm
SVTS B 01-U-A-03/003 circuits
Stable transmission for sensitive signals and power
The SVTS B 01-U-A-03/00 is a compact slip ring with 3 circuits rated at 20 A, a 32 mm outer diameter and IP65 protection. Its current capacity and multipoint contacts support demanding rotating…
250-400 rpm
3 x 20A
IP65
32.0 mm
SVTS B 02-S-A-06/006 circuits
Accessible rotary connections to simplify machine wiring
The SVTS B 02-S-A-06/00 is an industrial slip ring with 6 circuits rated at 20 A, a 45 mm outer diameter and IP51 protection. Its multipoint contacts and Faston terminals provide reliable power…
250-400 rpm
6 x 20A
IP51
45.0 mm
SVTS B 02-S-A-06/028 circuits
Accessible rotary connections to simplify machine wiring
The SVTS B 02-S-A-06/02 combines 6 circuits rated at 20 A with 2 circuits rated at 5 A in a slip ring with a 45 mm outer diameter and IP51 protection. This configuration transmits power and signals,…
250-400 rpm
2 x 5A, 6 x 20A
IP51
45.0 mm
