SVTS A Ethernet
Ethernet-based field buses are increasingly used for industrial applications: EtherCAT, Profinet, Industrial Ethernet, and others. Whether there are used for automation equipment communication, servo motor control, or even video camera communication (PoE or not), they are based on the IEEE802.3 norm that defines the copper twisted pair as the main physical media.
In order to provide the right product with the right performance for those applications, we created the E1M (100Base-TX, 2 pairs) and E1G (1000Base-T, 4 pairs) option for the SVTS A Series slip rings. They integrated shielded copper twisted pair up to the rings and brushes with specific materials to offer transmission performances that can be comparable to a standard certified cable.

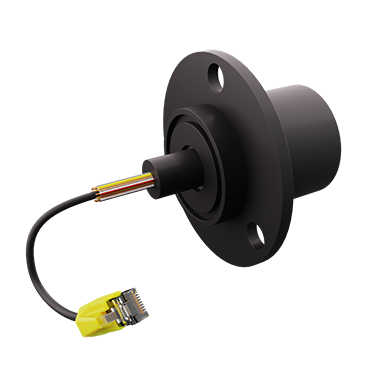

Those Ethernet slip rings come with factory-mounted RJ45 connectors and can be combined with other signals or power circuits. There are many cable, connectors, or circuits combinations possibilities, do not hesitate to contact our technical team to define the right product for your application.
SVTS A 03-S-X-00/00-E1G1 circuit
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/00-E1G is a compact slip ring dedicated to a Gigabit Ethernet 1000Base-T connection, with a 22 mm outer diameter and IP51 protection. It provides data transmission at up to 1 Gbit/s between the stationary and rotating parts of…
0-250 rpm
IP51
22.0 mm
SVTS A 03-S-X-00/00-E1M1 circuit
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/00-E1M is a compact slip ring dedicated to a Fast Ethernet 100Base-TX connection, with a 22 mm outer diameter and IP51 protection. It maintains network communication at up to 100 Mbit/s through a continuously rotating axis.
0-250 rpm
IP51
22.0 mm
SVTS A 03-S-X-00/03-E1G4 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/03-E1G combines 3 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a slip ring with a 22 mm outer diameter and IP51 protection. It combines electrical transmission and data rates up to 1 Gbit/s in a single…
0-250 rpm
3 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/06-E1G7 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/06-E1G combines 6 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a 22 mm outer diameter with IP51 protection. It simultaneously transmits electrical connections and network data at up to 1 Gbit/s through…
0-250 rpm
6 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/06-E1M7 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/06-E1M combines 6 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a compact 22 mm slip ring with IP51 protection. This configuration centralises electrical transmission and network communication at up to 100…
0-250 rpm
6 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/09-E1M10 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/09-E1M combines 9 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a slip ring with a 22 mm outer diameter and IP51 protection. It suits rotating architectures requiring multiple electrical channels and…
0-250 rpm
9 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/12-E1G13 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/12-E1G combines 12 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a compact 22 mm slip ring with IP51 protection. It combines a high number of electrical channels with network communication at up to 1…
0-250 rpm
12 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/12-E1M13 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/12-E1M combines 12 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 22 mm outer diameter with IP51 protection. This version combines multiple electrical connections and network transmission at up to 100 Mbit…
0-250 rpm
12 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/18-E1M19 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/18-E1M combines 18 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 22 mm slip ring with IP51 protection. It concentrates a large number of electrical connections and network communication at up to 100 Mbit/…
0-250 rpm
18 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/24-E1G25 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/24-E1G combines 24 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a 22 mm slip ring with IP51 protection. This version combines high electrical connection density with network transmission at up to 1 Gbit…
0-250 rpm
24 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/30-E1M31 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/30-E1M combines 30 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 22 mm slip ring with IP51 protection. This configuration combines very high electrical connection density with network data transmission at…
0-250 rpm
30 x 2A
IP51
22.0 mm
SVTS A 04-S-X-00/18-E1G19 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/18-E1G is a compact slip ring combining 18 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a 25 mm outer diameter with IP51 protection. It combines electrical transmission and network data rates up to 1…
0-250 rpm
18 x 2A
IP51
25.0 mm
SVTS A 04-S-X-00/24-E1G25 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/24-E1G combines 24 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a slip ring with a 25 mm outer diameter and IP51 protection. This configuration provides high connection density and network transmission…
0-250 rpm
24 x 2A
IP51
25.0 mm
SVTS A 04-S-X-00/24-E1M25 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/24-E1M combines 24 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 25 mm outer diameter with IP51 protection. It centralises numerous electrical channels and Ethernet communication at up to 100 Mbit/s…
0-250 rpm
24 x 2A
IP51
25.0 mm
SVTS A 04-S-X-00/30-E1M31 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/30-E1M is a compact slip ring combining 30 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection, a 25 mm outer diameter and IP51 protection. It suits architectures requiring numerous electrical connections and…
0-250 rpm
30 x 2A
IP51
25.0 mm
SVTS A 04-S-X-00/34-E1G35 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/34-E1G combines 34 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a slip ring with a 25 mm outer diameter and IP51 protection. It combines high electrical connection density with data transmission at up…
0-250 rpm
34 x 2A
IP51
25.0 mm
SVTS A 04-S-X-00/40-E1M41 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/40-E1M combines 40 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a compact 25 mm slip ring with IP51 protection. It brings together a large number of electrical connections and network communication at up…
0-250 rpm
40 x 2A
IP51
25.0 mm
SVTS A 04-S-X-00/44-E1G45 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/44-E1G combines 44 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a slip ring with a 25 mm outer diameter and IP51 protection. This version concentrates high electrical channel density and network…
0-250 rpm
44 x 2A
IP51
25.0 mm
SVTS A 04-S-X-00/50-E1M51 circuits
Electrical and network transmission for compact machine architectures
The SVTS A 04-S-X-00/50-E1M combines 50 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 25 mm slip ring with IP51 protection. It provides very high electrical connection density while integrating network communication at up to…
0-250 rpm
50 x 2A
IP51
25.0 mm
