SVTS A
These units are available in many standard configurations from 2 to 56 circuits.
Due to their small ring diameter, the SVTS A series grants low peripheral speed between bushes and rings, as well as reduced dynamic imbalance that means very low wear and long life. To prevent sensitive signals of being disturbed by external perturbations and/or to reach very high data rates, the SVTS A 06 series offers a rotating coaxial contact which allows to transfer signals up to 3Gbps depending of the used cable type. With SVTS A 05 series you can get the perfect balance between compacity and high current rating up to 20A.
|
|
Options
* Customizable
SVTS A 01-S-X-00/033 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-S-X-00/03 is a miniature slip ring with 3 circuits rated at 1 A, an outer diameter of only 12.4 mm and IP51 protection. Its compact design and gold-to-gold contacts support reliable transmission of signals and low currents in equipment…
0-250 rpm
3 x 1A
IP51
12.4 mm

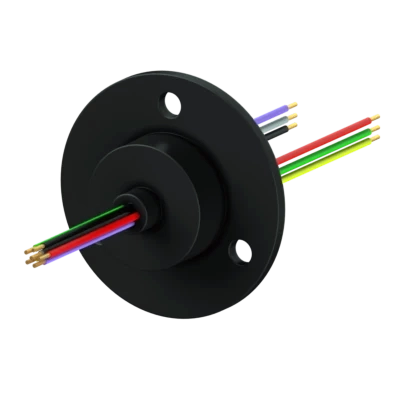

SVTS A 01-S-X-00/066 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-S-X-00/06 is a miniature slip ring with 6 circuits rated at 1 A, IP51 protection and an outer diameter of 12.4 mm. It enables multiple signals or low currents to be transmitted through a rotating axis while keeping installation space…
0-250 rpm
6 x 1A
IP51
12.4 mm
SVTS A 01-S-X-00/1212 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-S-X-00/12 is a miniature slip ring with 12 circuits rated at 1 A, IP51 protection and a 12.4 mm outer diameter. This configuration combines a high number of electrical channels in a compact format suited to signal and low-current…
0-250 rpm
12 x 1A
IP51
12.4 mm
SVTS A 01-S-X-00/1818 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-S-X-00/18 is a miniature slip ring with 18 circuits rated at 1 A and IP51 protection within an outer diameter of only 12.4 mm. Its high circuit count allows multiple electrical connections to be grouped into a small space while…
0-250 rpm
18 x 1A
IP51
12.4 mm
SVTS A 01-U-X-00/033 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-U-X-00/03 is a miniature slip ring with 3 circuits rated at 1 A, IP65 protection and an outer diameter of only 12.4 mm. Its compact format provides signal and low-current transmission across a rotating axis while offering enhanced…
0-250 rpm
3 x 1A
IP65
12.4 mm
SVTS A 01-U-X-00/066 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-U-X-00/06 is a miniature slip ring with 6 circuits rated at 1 A, combining a 12.4 mm outer diameter with IP65 protection. It provides multiple electrical transmission channels in a compact volume for rotating systems requiring enhanced…
0-250 rpm
6 x 1A
IP65
12.5 mm
SVTS A 01-U-X-00/1212 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-U-X-00/12 is a miniature slip ring with 12 circuits rated at 1 A, IP65 protection and a 12.4 mm outer diameter. It concentrates numerous signal or low-current channels into a compact rotary connection for environments requiring…
0-250 rpm
12 x 1A
IP65
12.5 mm
SVTS A 01-U-X-00/1818 circuits
Rotary transmission when every millimeter counts
The SVTS A 01-U-X-00/18 is a miniature slip ring with 18 circuits rated at 1 A, a 12.4 mm outer diameter and IP65 protection. This version maximises the number of electrical connections available within the A01 series footprint while providing…
0-250 rpm
18 x 1A
IP65
12.5 mm
SVTS A 02-S-X-00/2424 circuits
More connections in a still-minimal footprint
The SVTS A 02-S-X-00/24 is a compact slip ring with 24 circuits rated at 1 A, a 15.5 mm outer diameter and IP51 protection. Its high channel density and gold-to-gold contacts support reliable transmission of signals and low currents in rotating…
0-250 rpm
24 x 1A
IP51
15.5 mm
SVTS A 03-S-X-00/00-E1G1 circuit
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/00-E1G is a compact slip ring dedicated to a Gigabit Ethernet 1000Base-T connection, with a 22 mm outer diameter and IP51 protection. It provides data transmission at up to 1 Gbit/s between the stationary and rotating parts of…
0-250 rpm
IP51
22.0 mm
SVTS A 03-S-X-00/00-E1M1 circuit
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/00-E1M is a compact slip ring dedicated to a Fast Ethernet 100Base-TX connection, with a 22 mm outer diameter and IP51 protection. It maintains network communication at up to 100 Mbit/s through a continuously rotating axis.
0-250 rpm
IP51
22.0 mm
SVTS A 03-S-X-00/03-E1G4 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/03-E1G combines 3 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a slip ring with a 22 mm outer diameter and IP51 protection. It combines electrical transmission and data rates up to 1 Gbit/s in a single…
0-250 rpm
3 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/066 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/06 is a compact slip ring with 6 circuits rated at 2 A, a 22 mm outer diameter and IP51 protection. It provides continuous transmission of multiple signals or low currents in rotating equipment where installation space is…
0-250 rpm
6 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/06-E1G7 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/06-E1G combines 6 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a 22 mm outer diameter with IP51 protection. It simultaneously transmits electrical connections and network data at up to 1 Gbit/s through…
0-250 rpm
6 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/06-E1M7 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/06-E1M combines 6 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a compact 22 mm slip ring with IP51 protection. This configuration centralises electrical transmission and network communication at up to 100…
0-250 rpm
6 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/09-E1M10 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/09-E1M combines 9 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a slip ring with a 22 mm outer diameter and IP51 protection. It suits rotating architectures requiring multiple electrical channels and…
0-250 rpm
9 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/1212 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/12 is a compact slip ring with 12 circuits rated at 2 A, IP51 protection and a 22 mm outer diameter. Its connection density groups multiple signals and low currents into a single rotary interface.
0-250 rpm
12 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/12-E1G13 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/12-E1G combines 12 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a compact 22 mm slip ring with IP51 protection. It combines a high number of electrical channels with network communication at up to 1…
0-250 rpm
12 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/12-E1M13 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/12-E1M combines 12 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 22 mm outer diameter with IP51 protection. This version combines multiple electrical connections and network transmission at up to 100 Mbit…
0-250 rpm
12 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/1515 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/15 is a compact slip ring with 15 circuits rated at 2 A within a 22 mm outer diameter and IP51 protection. It provides a high density of electrical channels for machines requiring multiple transmissions through a continuously…
0-250 rpm
15 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/1818 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/18 is a slip ring with 18 circuits rated at 2 A, a 22 mm outer diameter and IP51 protection. This configuration concentrates numerous electrical connections into a compact format to reduce the footprint of the rotary interface.
0-250 rpm
18 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/18-E1M19 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/18-E1M combines 18 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 22 mm slip ring with IP51 protection. It concentrates a large number of electrical connections and network communication at up to 100 Mbit/…
0-250 rpm
18 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/2424 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/24 is a compact slip ring with 24 circuits rated at 2 A, a 22 mm outer diameter and IP51 protection. Its high circuit density centralises numerous electrical connections while maintaining a small footprint.
0-250 rpm
24 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/24-E1G25 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/24-E1G combines 24 circuits rated at 2 A with a Gigabit Ethernet 1000Base-T connection in a 22 mm slip ring with IP51 protection. This version combines high electrical connection density with network transmission at up to 1 Gbit…
0-250 rpm
24 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/3030 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/30 is a slip ring with 30 circuits rated at 2 A despite a limited 22 mm outer diameter, with IP51 protection. It provides very high channel density for centralising the electrical connections of rotating equipment.
0-250 rpm
30 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/30-E1M31 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/30-E1M combines 30 circuits rated at 2 A with a Fast Ethernet 100Base-TX connection in a 22 mm slip ring with IP51 protection. This configuration combines very high electrical connection density with network data transmission at…
0-250 rpm
30 x 2A
IP51
22.0 mm
SVTS A 03-S-X-00/3636 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-00/36 is a compact slip ring with 36 circuits rated at 2 A, an outer diameter of only 22 mm and IP51 protection. This version maximises the number of electrical channels available in the A03 series for rotating architectures with…
0-250 rpm
36 x 2A
IP51
22.0 mm
SVTS A 03-S-X-02/024 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-02/02 is a compact slip ring combining 2 circuits rated at 2 A and 2 circuits rated at 6 A, with a 22 mm outer diameter and IP51 protection. This configuration brings different current levels together in a single rotary connection.
0-250 rpm
2 x 2A, 2 x 6A
IP51
22.0 mm
SVTS A 03-S-X-03/003 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-03/00 is a compact slip ring equipped with 3 circuits rated at 8 A, with a 22 mm outer diameter and IP51 protection. It suits rotating applications requiring higher current while maintaining a compact installation format.
0-250 rpm
3 x 8A
IP51
22.0 mm
SVTS A 03-S-X-04/0610 circuits
Power, signals and data combined in a compact design
The SVTS A 03-S-X-04/06 combines 4 circuits rated at 6 A and 6 circuits rated at 2 A in a slip ring with a 22 mm outer diameter and IP51 protection. This architecture enables power and signal transmission through the same compact rotary interface.
0-250 rpm
6 x 2A, 4 x 6A
IP51
22.0 mm
