SVTS C
The SVTS C series is charaterized by a through hole and uses a special technology.
It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. No lubrication required.
|
|
Options
* Customizable
SVTS C 01-S-A-00/02 2 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
2 x 2A
IP 51
17.0 mm
SVTS C 01-S-A-00/03 3 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
3 x 2A
IP 51
17.0 mm
SVTS C 01-S-A-00/06 6 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
6 x 2A
IP 51
17.0 mm
SVTS C 01-S-A-00/08 8 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
8 x 2A
IP 51
17.0 mm
SVTS C 02-S-A-00/02 2 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
2 x 2A
IP 51
22.0 mm
SVTS C 02-S-A-00/06 6 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
6 x 2A
IP 51
22.0 mm
SVTS C 02-S-A-00/08 8 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
8 x 2A
IP 51
22.0 mm
SVTS C 02-S-A-00/12 12 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
12 x 2A
IP 51
22.0 mm
SVTS C 03-S-A-00/06 6 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
6 x 5A
IP 51
54.0 mm
SVTS C 03-S-A-00/12 12 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
12 x 5A
IP 51
54.0 mm
SVTS C 03-S-A-00/18 18 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
18 x 5A
IP 51
54.0 mm
SVTS C 03-S-A-00/24 24 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
24 x 5A
IP 51
54.0 mm
SVTS C 03-T-A-00/06 6 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
6 x 5A
IP 54
54.0 mm
SVTS C 03-T-A-00/12 12 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
12 x 5A
IP 54
54.0 mm
SVTS C 03-T-A-00/18 18 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
18 x 5A
IP 54
54.0 mm
SVTS C 03-T-A-00/24 24 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
24 x 5A
IP 54
54.0 mm

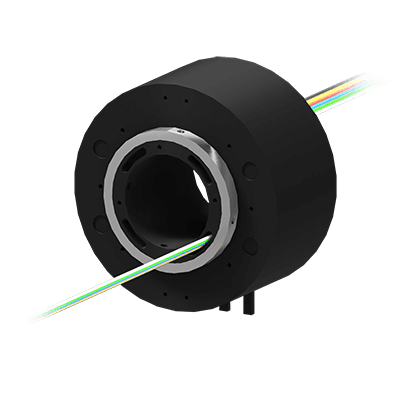

SVTS C 03-U-A-00/06 6 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
6 x 5A
IP 65
54.0 mm
SVTS C 03-U-A-00/12 12 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
12 x 5A
IP 65
54.0 mm
SVTS C 03-U-A-00/18 18 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
18 x 5A
IP 65
54.0 mm
SVTS C 03-U-A-00/24 24 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
24 x 5A
IP 65
54.0 mm
SVTS C 04-S-A-00/00-...-E1G 14 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-00/00-...-E1M 5 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-00/12 12 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
12 x 2A
IP 51
78.0 mm
SVTS C 04-S-A-00/12-...-E1G 21 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-00/12-...-E1M 17 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-00/24 24 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
24 x 2A
IP 51
78.0 mm
SVTS C 04-S-A-00/24-...-E1G 33 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-00/24-...-E1M 29 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-00/36 36 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
36 x 2A
IP 51
78.0 mm
SVTS C 04-S-A-00/36-...-E1M 41 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-00/48 48 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
48 x 2A
IP 51
78.0 mm
SVTS C 04-S-A-06/00 6 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
6 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-06/00-...-E1G 15 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-06/00-...-E1M 11 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-06/12 15 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
12 x 2A, 3 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-06/12-...-E1G 27 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-06/12-...-E1M 23 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-06/24 30 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
24 x 2A, 6 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-06/24-...-E1M 35 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-06/36 42 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
36 x 2A, 6 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-12/00 12 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
12 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-12/00-...-E1G 21 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-12/00-...-E1M 17 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-12/12 24 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
12 x 2A, 12 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-12/12-...-E1M 29 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-12/24 36 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
24 x 2A, 12 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-18/00 18 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
18 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-18/00-...-E1M 23 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a…
>400 rpm
IP 51
47.5 mm
SVTS C 04-S-A-18/12 30 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
12 x 2A, 18 x 15A
IP 51
78.0 mm
SVTS C 04-S-A-24/00 24 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
