The SVTS E series is characterized by a through hole and uses a special technology. It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. No lubrication required.

  • Through hole 25-38-50 or 60 mm
  • Power circuits
  • Compact & Low cost
  • Low friction torque
  • High lifetime and reliability
  • Compliant to CE and ROHS

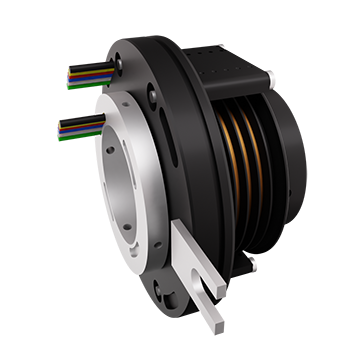

SVTS E thumb
Affichage 1 - 10 sur 10

SVTS E 01-R-A-03/00-XXX-0013 circuits

Servotecnica SVTS E 01-R-A-03/00-XXX-001 through-bore slip ring

Rotary power integrated directly into the machine structure

The SVTS E 01-R-A-03/00-XXX-001 is an IP00 open through-bore slip ring with a 25.4 mm bore, equipped with 3 power circuits rated at 20 A and a 74 mm outer diameter. Its open design is intended for integration inside suitable equipment or an enclosure while preserving a central passage for the mechanical architecture.

byLogo servotcnica
0-250 rpm
3 x 20A
IP00
74.0 mm
View Product

SVTS E 01-R-A-03/00-XXX-0023 circuits

Servotecnica SVTS E 01-R-A-03/00-XXX-002 through-bore slip ring

Rotary power integrated directly into the machine structure

The SVTS E 01-R-A-03/00-XXX-002 is an IP00 open through-bore slip ring with a 25.4 mm bore, equipped with 3 power circuits rated at 40 A and a 74 mm outer diameter. It transfers power to the rotating section without sacrificing the central passage, facilitating integration around a shaft or other mechanical elements.

byLogo servotcnica
0-250 rpm
3 x 40A
IP00
74.0 mm
View Product

SVTS E 02-R-A-03/00-XXX-0013 circuits

Servotecnica SVTS E 02-R-A-03/00-XXX-001 through-bore slip ring

More mechanical clearance in an open power-transfer architecture

The SVTS E 02-R-A-03/00-XXX-001 is an IP00 open through-bore slip ring with a 38.1 mm bore, equipped with 3 power circuits rated at 20 A and a 94 mm outer diameter. This architecture groups three power channels around a large through-bore to simplify the power supply of rotating equipment.

byLogo servotcnica
0-250 rpm
3 x 20A
IP00
94.0 mm
View Product

SVTS E 02-R-A-03/00-XXX-0023 circuits

Servotecnica SVTS E 02-R-A-03/00-XXX-002 through-bore slip ring

More mechanical clearance in an open power-transfer architecture

The SVTS E 02-R-A-03/00-XXX-002 is an IP00 open through-bore slip ring with a 38.1 mm bore, equipped with 3 power circuits rated at 40 A and a 94 mm outer diameter. Its open design is intended for integration inside suitable equipment or an enclosure while preserving a central passage for the mechanical architecture.

byLogo servotcnica
0-250 rpm
3 x 40A
IP00
94.0 mm
View Product

SVTS E 03-R-A-03/00-XXX-0013 circuits

Servotecnica SVTS E 03-R-A-03/00-XXX-001 through-bore slip ring

A wide through-bore to integrate power close to the rotating axis

The SVTS E 03-R-A-03/00-XXX-001 is an IP00 open through-bore slip ring with a 50 mm bore, equipped with 3 power circuits rated at 20 A and a 115 mm outer diameter. It transfers power to the rotating section without sacrificing the central passage, facilitating integration around a shaft or other mechanical elements.

byLogo servotcnica
0-250 rpm
3 x 20A
IP00
115.0 mm
View Product

SVTS E 03-R-A-03/00-XXX-0023 circuits

Servotecnica SVTS E 03-R-A-03/00-XXX-002 through-bore slip ring

A wide through-bore to integrate power close to the rotating axis

The SVTS E 03-R-A-03/00-XXX-002 is an IP00 open through-bore slip ring with a 50 mm bore, equipped with 3 power circuits rated at 40 A and a 115 mm outer diameter. This architecture groups three power channels around a large through-bore to simplify the power supply of rotating equipment.

byLogo servotcnica
0-250 rpm
3 x 40A
IP00
115.0 mm
View Product

SVTS E 03-R-A-03/00-XXX-0033 circuits

Servotecnica SVTS E 03-R-A-03/00-XXX-003 through-bore slip ring

A wide through-bore to integrate power close to the rotating axis

The SVTS E 03-R-A-03/00-XXX-003 is an IP00 open through-bore slip ring with a 50 mm bore, equipped with 3 power circuits rated at 60 A and a 115 mm outer diameter. Its open design is intended for integration inside suitable equipment or an enclosure while preserving a central passage for the mechanical architecture.

byLogo servotcnica
0-250 rpm
3 x 60A
IP00
115.0 mm
View Product

SVTS E 04-R-A-03/00-XXX-0013 circuits

Servotecnica SVTS E 04-R-A-03/00-XXX-001 through-bore slip ring

Power around a large central passage, without unnecessary housing

The SVTS E 04-R-A-03/00-XXX-001 is an IP00 open through-bore slip ring with a 60 mm bore, equipped with 3 power circuits rated at 20 A and a 130 mm outer diameter. It transfers power to the rotating section without sacrificing the central passage, facilitating integration around a shaft or other mechanical elements.

byLogo servotcnica
0-250 rpm
3 x 20A
IP00
130.0 mm
View Product

SVTS E 04-R-A-03/00-XXX-0023 circuits

Servotecnica SVTS E 04-R-A-03/00-XXX-002 through-bore slip ring

Power around a large central passage, without unnecessary housing

The SVTS E 04-R-A-03/00-XXX-002 is an IP00 open through-bore slip ring with a 60 mm bore, equipped with 3 power circuits rated at 40 A and a 130 mm outer diameter. This architecture groups three power channels around a large through-bore to simplify the power supply of rotating equipment.

byLogo servotcnica
0-250 rpm
3 x 40A
IP00
130.0 mm
View Product

SVTS E 04-R-A-03/00-XXX-0033 circuits

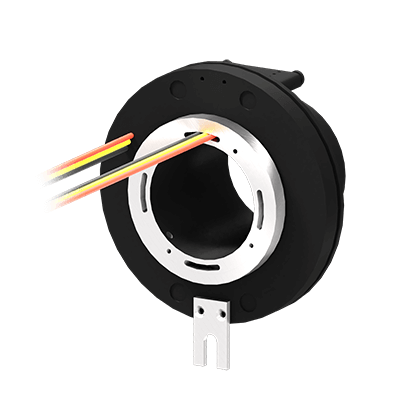

Servotecnica SVTS E 04-R-A-03/00-XXX-003 through-bore slip ring

Power around a large central passage, without unnecessary housing

The SVTS E 04-R-A-03/00-XXX-003 is an IP00 open through-bore slip ring with a 60 mm bore, equipped with 3 power circuits rated at 60 A and a 130 mm outer diameter. Its open design is intended for integration inside suitable equipment or an enclosure while preserving a central passage for the mechanical architecture.

byLogo servotcnica
0-250 rpm
3 x 60A
IP00
130.0 mm
View Product
