Components
Slip rings
Slip rings are used in system requiring transmission of electrical power and/or signals from a stationary to a bi-directional, intermittent or continiously rotating structure.
Designed to deliver flexible, cost-effective, reliable and high quality solutions, the units are available in many standard configurations. Numerous customized versions can be provided.
They meet customers expectations within a wide range of applications such as high definition video systems, radar antennas, medical device, renewable energy, food & beverage...
Our slip ring FAQ +
What is the maximum rotation speed?
As a standard, our rotary unions are rated for continuous operation at 600 rpm. The maximum speed largely depends on the usage cycle – higher speeds can lead to overheating and premature wear. It involves a trade-off between performance and lifespan. In general, we can easily achieve speeds of up to 1500 rpm while maintaining reasonable lifespan.
Do you offer flat models?
We do not produce what are commonly referred to as "pancake" models with concentric rings on PCBs. Our flat models involve a concentric assembly of various unions, allowing for multiple circuits within a limited height.
Can fiber optics pass through your rotary unions?
Fiber optics use an independent system. Fiber Optic Rotary Joints (FORJs) utilize prisms to guide light within the rotating connection. They can be compact and combined with electrical rotary unions. Monochannel or multichannel FORJs can be combined, but they cannot have a through-bore.
Can we transmit HD video through a rotary union?
Yes, even in standard models, our rotary unions with the "E1G" Gigabit option can transmit GigE-Vision signals. It's also possible to transmit HDMI or HD-SDI signals with appropriate models. These signals can be combined with other data or power signals.
Can sensitive signals and motor power be combined in a single rotary union?
Yes, many applications combine sensitive signal transmission with power transmission. For example, for servo motors, power is often combined with measurement or communication signals in the same cable. Hybrid cables can be directly integrated or "emulated" with commercial cables, allowing integration of various standards: DRIVE-CliQ, PowerLink, Sercos, Ethercat, etc. The arrangement of ground/shield paths and power distribution is carefully designed to avoid interference.
Can terminals or connectors be directly attached to the slip ring?
Our rotary union manufacturing process typically involves cable output. Some models like SVTS B offer terminals or connectors directly on the union. PES also has an engineering department and wiring workshop capable of creating any required connectivity (plugs, bases, terminals) according to your needs, while adapting mechanical interfaces.
What are your delivery times?
200 references in stock available within 2-3 days, non-stocked products: 6-8 weeks, custom design: 8 to 14 weeks (depending on specifications).
Do your slip rings require maintenance?
Our slip rings are guaranteed to be maintenance-free throughout their entire lifespan (10 to 100 million revolutions, depending on the model).
Are there solutions that allow both pneumatic and electrical connections in the same unit?
Yes, we offer hybrid solutions that combine electrical needs with all types of fluids in a single integrated unit.
Do you offer UL-certified solutions?
UL-compliant products available upon request, with UL certification possible.
Are your products CE certified?
Yes, all our slip rings are CE certified.
Options
* Customizable
** Excluding discount
SVTS B 01-U-A-02/002 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2 x 20A
IP65
32.0 mm
SVTS B 01-U-A-02/024 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2 x 5A, 2 x 20A
IP65
32.0 mm
SVTS B 01-U-A-02/035 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2 x 5A, 3 x 20A
IP65
32.0 mm
SVTS B 01-U-A-03/003 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
3 x 20A
IP65
32.0 mm
SVTS B 02-S-A-06/006 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
6 x 20A
IP51
45.0 mm
SVTS B 02-S-A-06/028 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2 x 5A, 6 x 20A
IP51
45.0 mm
SVTS B 03-U-A-02/003 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2 x 20A
IP65
32.0 mm
SVTS B 03-U-A-02/025 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2 x 2A, 2 x 14A
IP65
32.0 mm
SVTS B 03-U-A-03/003 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
3 x 20A
IP65
32.0 mm
SVTS B 03-U-A-03/025 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
3x 2A, 2 x 20A
IP65
32.0 mm
SVTS B 04-S-A-02/002 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2 x 20A
IP51
70.0 mm
SVTS B 04-S-A-02/024 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2x 2A, 2 x 20A
IP51
70.0 mm
SVTS B 04-S-A-03/003 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
3 x 20A
IP51
70.0 mm
SVTS B 04-S-A-03/025 circuits
Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits
Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.
250-400 rpm
2x 2A, 3 x 20A
IP51
70.0 mm
SVTS C 01-S-A-00/022 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
2 x 2A
IP51
17.0 mm
SVTS C 01-S-A-00/033 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
3 x 2A
IP51
17.0 mm
SVTS C 01-S-A-00/066 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
6 x 2A
IP51
17.0 mm
SVTS C 01-S-A-00/088 circuits
Thru-bore, I.D. 3 mm, O.D. 17 mm, 2 to 8 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
8 x 2A
IP51
17.0 mm
SVTS C 02-S-A-00/022 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
2 x 2A
IP51
22.0 mm
SVTS C 02-S-A-00/066 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
6 x 2A
IP51
22.0 mm
SVTS C 02-S-A-00/088 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
8 x 2A
IP51
22.0 mm
SVTS C 02-S-A-00/1212 circuits
Thru-bore, I.D. 4.5 mm, O.D. 22 mm, 2 to 12 circuits
Slip ring designed for power and control-command signals with thru-bore for shaft mounting or other applications. High data rate up to 100 Mbits/s.
0-250 rpm
12 x 2A
IP51
22.0 mm
SVTS C 03-S-A-00/066 circuits

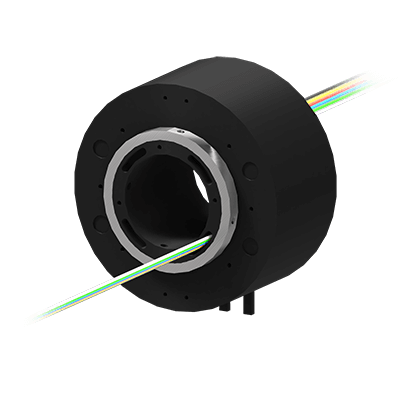

Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
6 x 5A
IP51
54.0 mm
SVTS C 03-S-A-00/1212 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
12 x 5A
IP51
54.0 mm
SVTS C 03-S-A-00/1818 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
18 x 5A
IP51
54.0 mm
SVTS C 03-S-A-00/2424 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
24 x 5A
IP51
54.0 mm
SVTS C 03-T-A-00/066 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
6 x 5A
IP54
54.0 mm
SVTS C 03-T-A-00/1212 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
12 x 5A
IP54
54.0 mm
SVTS C 03-T-A-00/1818 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
18 x 5A
IP54
54.0 mm
SVTS C 03-T-A-00/2424 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
24 x 5A
IP54
54.0 mm
SVTS C 03-U-A-00/066 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
6 x 5A
IP65
54.0 mm
SVTS C 03-U-A-00/1212 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
12 x 5A
IP65
54.0 mm
SVTS C 03-U-A-00/1818 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
18 x 5A
IP65
54.0 mm
SVTS C 03-U-A-00/2424 circuits
Through hole, I.D. 12.7 mm, O.D. 54.0 mm, 6 to 24 circuits
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. High data rate up to 100 Mbits/s.
>400 rpm
24 x 5A
IP65
54.0 mm
SVTS C 04-S-A-00/00-...-E1G14 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-00/00-...-E1M5 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-00/1212 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
12 x 2A
IP51
78.0 mm
SVTS C 04-S-A-00/12-...-E1G21 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-00/12-...-E1M17 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-00/2424 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
24 x 2A
IP51
78.0 mm
SVTS C 04-S-A-00/24-...-E1G33 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-00/24-...-E1M29 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-00/3636 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
36 x 2A
IP51
78.0 mm
SVTS C 04-S-A-00/36-...-E1M41 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-00/4848 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
48 x 2A
IP51
78.0 mm
SVTS C 04-S-A-06/006 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
6 x 15A
IP51
78.0 mm
SVTS C 04-S-A-06/00-...-E1G15 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-06/00-...-E1M11 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
>400 rpm
IP51
47.5 mm
SVTS C 04-S-A-06/1215 circuits
Through hole, I.D. 25.4 mm, O.D. 78.0 mm, 6 to 48 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
>400 rpm
12 x 2A, 3 x 15A
IP51
78.0 mm
SVTS C 04-S-A-06/12-...-E1G27 circuits
Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated…
